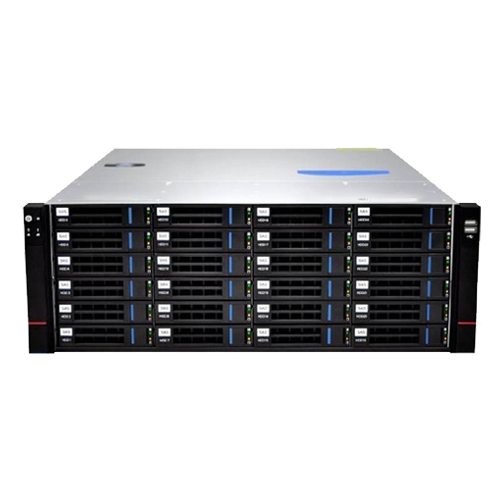

i9024 JBOD

i9024 JBOD

i9024 JBOD

i9024 JBOD

Salient Features
  • 4U Rack-mounted server chassis
  • Support Upto 24 Nos. x 3.5" inch/2.5" inch hot-swap hard drive bays
  • 12GB Backplane with Built in Expander
  • Supports Single Power supply OR (1+1) Redundant Power Supply

Specification

Model i9024 JBOD
Form Factor 4U Rack Mountable
Power Supply Type Single Power Supply OR (1+1) Redundant Power supply
No. of Supported Power Supplies 2
Hard Disk Bays
  • 24 x 3.5"/2.5"
  • can be built-in 2 x 2.5-inch non-hot-swap hard drive bays
  • Optional 2 x 2.5-inch hot-swap hard disks at the rear
HDD Backplane
  • 24-port 3.5" 12Gb/s SAS Expander backplane
  • 2-port 2.5" 12Gb/s SAS passive backplane (option)
HDD Hot-swap Supports SAS and SATA HDD
Cooling Fans Standard 3 Nos. of Fans
Chassis size 670 x 433 x 177mm (DxWxH)
