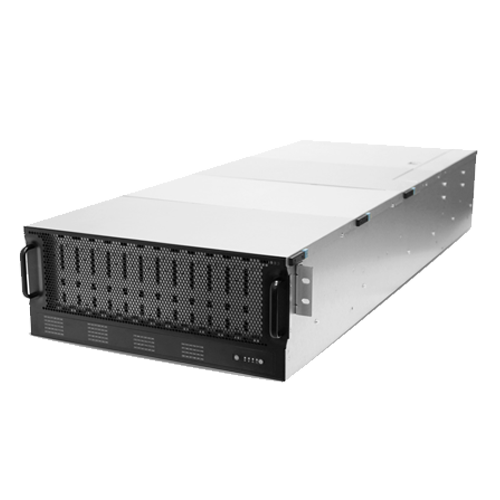

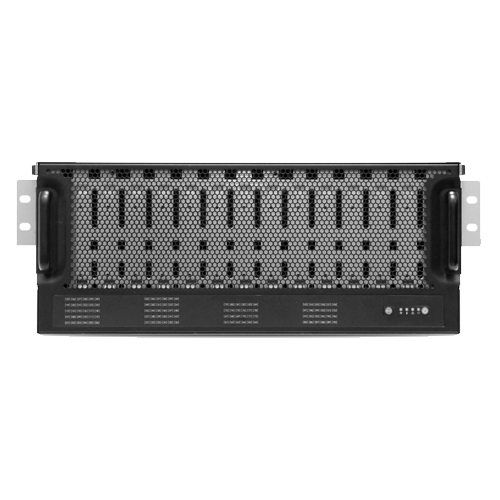

i9108 JBOD

i9108 JBOD

i9108 JBOD

Salient Features
  • Intelligent Enclosure Management
  • Individual drive power management
  • Hot swap design for easy maintenance and management
  • Tool-less drive trays

Specification

Model i9108 JBOD
Drive Bays 108 x 3.5" hot-swap SATA/SAS drive bays
Power Supply Redundant 2000W Platinum Level (1+1) power supplies 80PLUS (92%-94% efficiency)
Dimension / Form Factor 4U Storage JBOD Chassis
Administration / Management
  • Admin/Firmware Upgrade:
    • In-band
    • IEM port
  • LED Indicators Audible Alarm: Yes
General
  • Number of Expander: Single/Dual
  • Expander Chip: Broadcom SAS35x48
  • Host/Expansion Interface: 4 x Mini SAS HD (SFF-8644) per expander module
Drive Interface
  • 12Gb & 6Gb SAS if using dual expanders
  • 12Gb & 6Gb SAS/SATA if using single expander

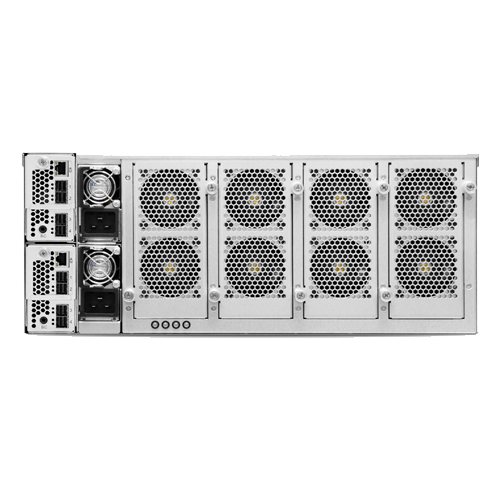

Systems Cooling Fans
  • 8 x 60 x 56mm hot swap fans
  • 1 x 40 x 56mm fan per expander module
Dimensions HxWxD : 176 mm x 434 mm x 1050 mm
