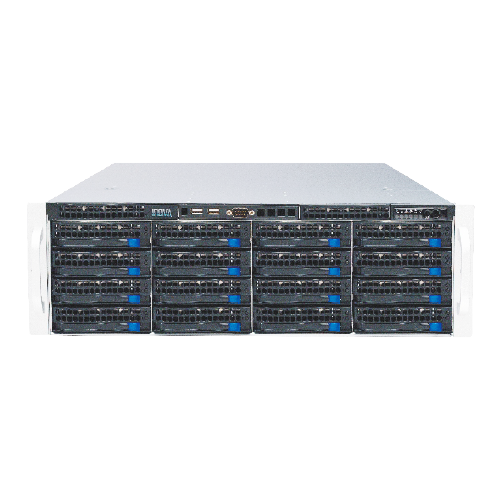

Inova 4800

Inova 4800

Inova 4800

Highlights & Benefits
  • Enterprise Class reliability and advanced features
  • User Friendly Web Based UI
  • NFS, CIFS, SMB, AFP Protocols Supported
  • iSSCI support for Block data
  • Multiple Snapshots
  • Appliance-to-Appliance File Level Replicaon
  • Active Directory Integration
  • USB Backup for Data Protection & Disaster Recovery
  • High Quality & Standard Support

Software Specification
Network Protocols CIFS/SMB, NFS, HTTP, iSCSI, SNMP, FTP, AFP
Client Operating System Support Windows XP, Windows Vista, Windows 7 Ultimate, Windows Server 2003,Windows Server 2008 R2, Red Hat, SuSE, Sun Solaris x86, Apple MAC OS X
Server Virtualisation Microsoft Hyper-V, Vmware ESX, Citrix XenServer
Browser Support Internet Explorer 7, 8 & 9, Firefox 3 and above, Google Chrome
Networking
  • Dual/Quad Gigabit Ethernet with Jumbo Frames Support
  • Link Aggregation/NIC Teaming
  • iSCSI Target Mode MPIO
  • Multiple Network Interface Support
  • DHCP Client
Volume Management
  • Multiple Logical Volume & Groups
  • Support for over 2TB Physical Volumes
  • Support for over 16TB Logical Volumes
  • Online Capacity Expansion
Data Protection
  • Multiple Snapshots
  • USB Local Backup
  • Appliance-to-Appliance Replication
Raid Protection Supports Software Raid Level 0, 1, 5, 6 & 10
Access Management
  • User Quota Control
  • Group Quota Control
  • Windows Active Directory Authentication
System Management
  • Simple Web Based GUI
  • HTTP Connections
  • System Status Monitoring
  • SNMP Traps
  • Download Event Logs Function
  • Configuration Backup & Restore
  • Graphical Network Usage View
  • Email Alerts

Hardware Specification
Processor Intel Xeon QC E3 1220-V2 3.3 GHz
Memory 8GB DDR4 / Upto 32GB
Maximum Capacity (RAW) 128TB
Hard Drive Bays 16
Network Port Quad Gigabit Ethernet
Network Port (Optional) Gigabit / 10G / FC / Infniband
Power Redundant Power Supply
Form Factor 3U Rackmount
Drive Type Supported SSD / SATA / SAS
Scalability External SAS Port (Optional)
Multiple USB Ports Yes
Raid Levels 0, 1, 5, 6, 10, 50, & 60
