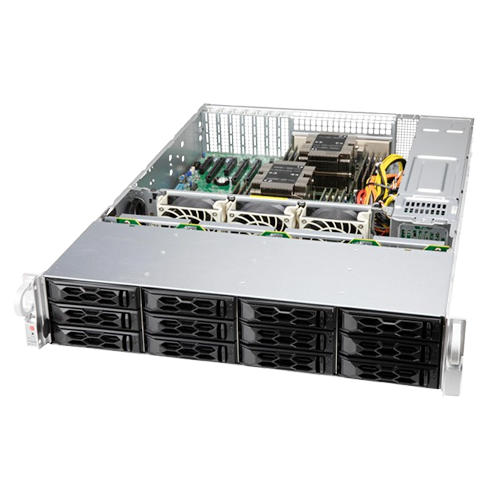

Inova 6000

Inova 6000

Salient Features
  • Enterprise Class reliability and advanced features
  • User Friendly Web Based UI
  • NFS, CIFS, SMB, AFP Protocols Supported
  • iSSCI support for Block data
  • Multiple Snapshots
  • Appliance-To-Appliance File Level Replication
  • Active Directory Integration
  • USB Backup for Data Protection & Disaster Recovery
  • High Quality & Standard Support

Overview

Fuionstor Unified Storage Appliance Series is an All-in-One Storage platform offering NAS, iSCSI (IP SAN) & Fiber SAN. This Series offers Rackmount Unified Storage Appliances that have been purposebuilt for small-to-medium sized business, remote offices and distributed enterprise users looking for enterprise-class features, high performance, easy to use and affordable to own.

The 6000 Series boasts a robust set of features like heterogeneous network/protocol support, snapshots, replication and much more

Software Specification
Network Protocols CIFS/SMB, NFS, HTTP, iSCSI, SNMP, FTP, AFP
Client Operating System Support Windows Server 2016, Windows Server 2019, Windows Server 2022, windows Server IOT 2022 ,Red Hat, SuSE, Sun Solaris x86, Apple MAC OS X, Linux
Server Virtualisation Microsoft Hyper-V, Vmware ESX, Citrix XenServer
Browser Support Internet Explorer 9, 10, 11 & above, Firefox, Google Chrome, Opera etc.
Networking
  • Dual/Quad Gigabit Ethernet with Jumbo Frames Support
  • Link Aggregation/NIC Teaming
  • iSCSI Target Mode MPIO
  • Multiple Network Interface Support
  • DHCP Client
Volume Management
  • Multiple Logical Volume & Groups
  • Support for over 2TB Physical Volumes
  • Support for over 16TB Logical Volumes
  • Online Capacity Expansion
Data Protection
  • Multiple Snapshots
  • USB Local Backup
  • Appliance-to-Appliance Replication
Raid Protection Supports H/W Raid Level 0, 1, 5, 6, 10, 50, & 60
Access Management
  • User Quota Control
  • Group Quota Control
  • Windows Active Directory Authentication
System Management
  • Simple Web Based GUI
  • HTTP Connections
  • System Status Monitoring
  • SNMP Traps
  • Download Event Logs Function
  • Configuration Backup & Restore
  • Graphical Network Usage View
  • Email Alerts

Hardware Specification
Processor Intel Xeon Processor
Memory 32GB DDR4/ Upto 512GB
Maximum Capacity (RAW) 288TB (Expandable upto 2PB)
Hard Drive Bays 12 (Supports upto 240 HDD using External JBOD)
Network Port Quad Gigabit Ethernet
Network Port (Optional) Gigabit / 10G / FC / Infniband
Power Redundant Power Supply
Form Factor 2U Rack Mountable
Drive Type Supported SSD / SATA / SAS
Scalability External SAS Port (Optional)
Multiple USB Ports Yes
Raid Levels 0, 1, 5, 6, 10, 50, & 60
NSI 2GB Cachcade (optional)
