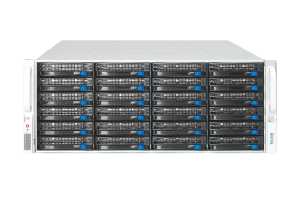

Inova 7200

Inova 7200

Inova 7200

Highlights & Benefits
  • Enterprise Class reliability and advanced features
  • User Friendly Web Based UI
  • NFS, CIFS, SMB, AFP Protocols Supported
  • iSSCI support for Block data
  • Multiple Snapshots
  • Appliance-to-Appliance File Level Replicaon
  • USB Backup for Data Protection & Disaster Recovery

Overview

FusionStor Inova Unified Storage Appliance Series is an All-in-One Storage plaorm offering SAN) & Fiber SAN. Inova 7200 Series offers Rackmount Unified Storage Appliances that have been purpose-built for small-to-medium sized business, remote offices and distributed enterprise users looking for enterprise-class features, high performance, easy to use and affordable to own. The Inova 3600 Series boasts a robust set of features like heterogeneous network/protocol support, snapshots, replication and much more

Software Specification
Network Protocols CIFS/SMB, NFS, HTTP, iSCSI, SNMP, FTP, AFP
Client Operating System Support Windows XP, Windows Vista, Windows 7 Ultimate, Windows Server 2003,Windows Server 2008 R2, Red Hat, SuSE, Sun Solaris x86, Apple MAC OS X, Linux
Server Virtualisation Microsoft Hyper-V, Vmware ESX, Citrix XenServer
Browser Support Internet Explorer 8, 9 & above, Firefox, Google Chrome, Opera etc
Networking
  • Dual/Quad Gigabit Ethernet with Jumbo Frames Support
  • Link Aggregation/NIC Teaming
  • iSCSI Target Mode MPIO
  • Multiple Network Interface Support
  • DHCP Client
Volume Management
  • Multiple Logical Volume & Groups
  • Support for over 2TB Physical Volumes
  • Support for over 16TB Logical Volumes
  • Online Capacity Expansion
Data Protection
  • Multiple Snapshots
  • USB Local Backup
  • Appliance-to-Appliance Replication
Raid Protection Supports H/W Raid Level 0, 1, 5, 6 & 10, 50, 60
Access Management
  • User Quota Control
  • Group Quota Control
  • Windows Active Directory Authentication
System Management
  • Simple Web Based GUI
  • HTTP Connections
  • System Status Monitoring
  • SNMP Traps
  • Download Event Logs Function
  • Configuration Backup & Restore
  • Graphical Network Usage View
  • Email Alerts

Hardware Specification
Processor Intel Xeon QC E5 1620 3.6 GHz
Memory 8GB DDR4 / Upto 32GB
Maximum Capacity (RAW) 192TB
Hard Drive Bays 24
Network Port Quad Gigabit Ethernet
Network Port (Optional) Gigabit / 10G / FC / Infniband
Power Redundant Power Supply
Form Factor 4U Rackmount
Drive Type Supported SSD / SATA / SAS
Scalability External SAS Port (Optional)
Multiple USB Ports Yes
Raid Levels 0, 1, 5, 6, 10, 50, & 60
