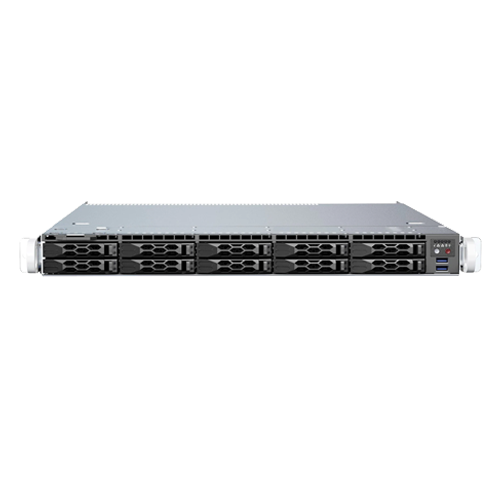

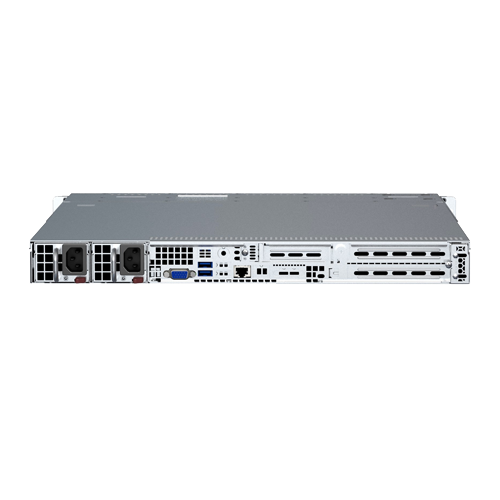

Invento i5038 Purley Series

i5038

Invento i5038 Purley Series

Salient Features
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
  • Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz, in 12 DIMM slots
  • 1 PCI-E 3.0 x32 Left Riser Slot, 1 PCI-E 3.0 x16 Right Riser Slot, 1 PCI-E 3.0 x16 for Add-On-Module (AOM)
  • 6 USB 3.0 ports (4 rear + 2 via headers)
  • Dual LAN with 10Gbase-T from C622
  • ASPEED AST2500 BMC
  • 10 x 2.5"(tool-less) hot-swap SAS3/SATA drive bay
  • 500W/600W redundant single output 80PLUS Platinum (94% Efficiency)

Specification

Model i5038
Processor Support 2 x 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
Core Logic Intel® C622 chipset
Memory
  • 12 x DIMM slots;
  • Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz
  • Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
Expansion Slot
  • PCI-E Slots
    • 1 PCI-E 3.0 x32 Left Riser Slot,
    • 1 PCI-E 3.0 x16 Right Riser Slot,
    • 1 PCI-E 3.0 x16 for Add-On-Module (AOM)
  • M.2
    • M.2 Interface: PCI-E 3.0 x4
    • Form Factor: 2242, 2260, 2280, 22110
    • Key: M-Key
RAID Options SATA: Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Drive Bays 10 x 2.5" hot-swap SAS3/SATA drive bay
Network Controller
  • Dual LAN with 10Gbase-T from C622
  • 1 x RJ45 Dedicated IPMI LAN port
Graphics ASPEED AST2500 BMC
IPMI IPMI 2.0 Support
Cooling Feature 3 x 40x56mm counter-rotation PWM fan(s)
Onboard I/O
  • SATA: 14 x SATA3 (6Gbps) ports
  • USB: 6 USB 2.0 ports (4 rear + 2 via headers)
  • Video Output: 1 VGA port
  • TPM: 1 TPM Header
Power Supply 500W/600W Redundant single output 80PLUS Platinum (94% Efficiency)
Dimension / Form Factor 1U Rackmount
