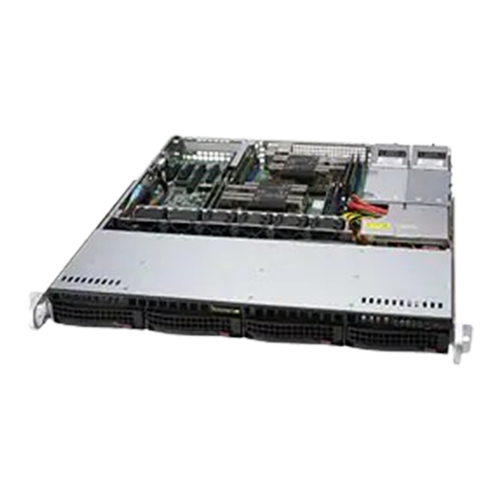

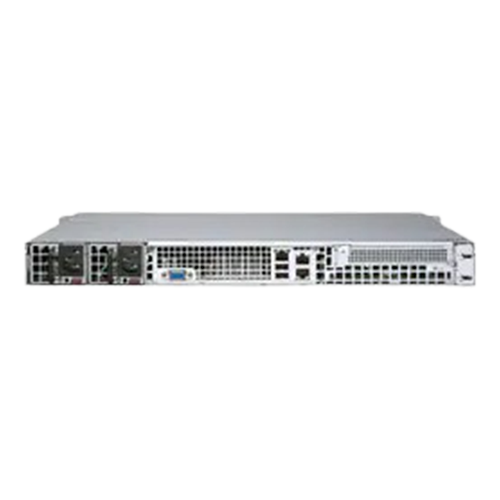

Invento i516 Purley Series

i516

Invento i516 Purley Series

Salient Features
  • Intel® Xeon® Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support Up to 140W, 2 UPI up to 10.4 GT/s
  • Up to 512GB Registered ECC RDIMM, DDR4-2666MHz; Up to 1TB Registered ECC LRDIMM, in 8 DIMM slots
  • 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot) M.2 Interface: 1 SATA/PCI-E 3.0 x4 M.2 Form Factor:2260, 2280 M.2 Key: M-Key
  • Dual LAN with Lewisburg Marvell 88E1512 PHY
  • 4 x 3.5" hot-swap SAS/SATA
  • 4 x 40x28mm PWM fan(s)
  • 600W redundancy PWS meet PMBus 1.2 with high efficiency and high power density

Specification

Model i516
Processor Support 2 X Intel® Xeon® Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support Up to 140W, 2 UPI up to 10.4 GT/s
Core Logic Intel® C621 chipset
Memory
  • 8 x DIMM slots;
  • Up to 512GB Registered ECC RDIMM, DDR4-2666MHz; Up to 1TB Registered ECC LRDIMM
PCIe Expansion Slot
  • 2 PCI-E 3.0 x16
  • 3 PCI-E 3.0 x8
  • 1 PCI-E 3.0 x4 (in x8 slot) M.2 Interface: 1 SATA/PCI-E 3.0 x4 M.2 Form Factor: 2260, 2280 M.2 Key: M-Key
RAID Options SATA: Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Drive Bays 4 x 3.5" hot-swap SAS/SATA
Networking
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 x RJ45 Management Port
IPMI ASPEED AST2500
Onboard I/O
  • SATA: 10 SATA3 (6Gbps) port
  • USB: 4 USB 2.0 ports (2 rear + 2 headers), 3 USB 3.0 ports (2 headers + 1 Type A)
  • Video Output: 1 VGA port
  • Serial Port / Header: 1 COM Port (1 header)
  • TPM: 1 TPM Header
Fans
  • 4 x 40x28mm PWM fan(s)
  • Optional 2 x fans for AOC cooling
Power Supply 600W Redundant Power Supplies Platinum Level High-efficiency
Dimension / Form Factor 1U Rackmount
