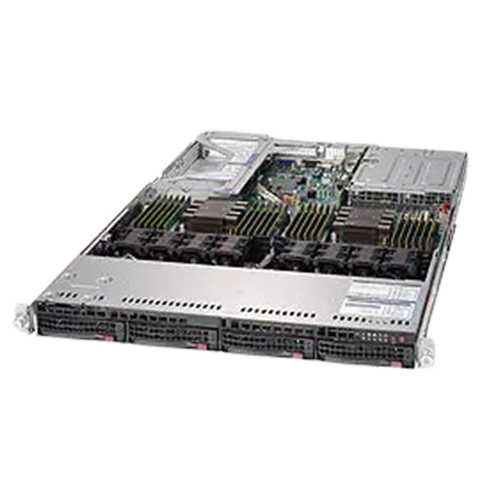

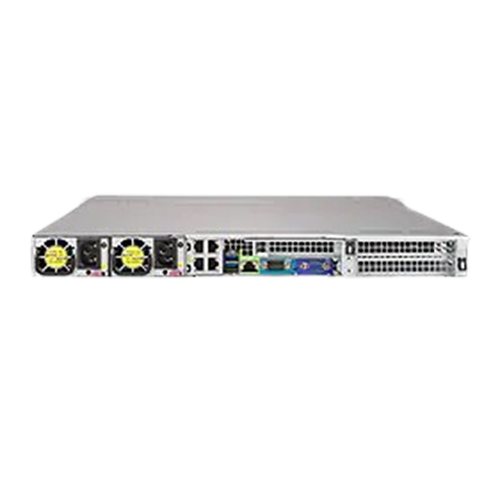

Invento i518 Purley Series

i518

Invento i518 Purley Series

Salient Features
  • Dual Socket P (LGA 3647) support 2nd Gen. Intel Xeon Scalable processors (Cascade Lake/Skylake)
  • Up to 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane DCPMM
  • 2 PCI-E 3.0 x16 slots (FH, 10.5" L), 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
  • 4 Hot-swap 3.5" Drive Bays
  • 4 Nos. Gigabit Ethernet ports
  • 8 Nos. Heavy duty fans
  • 750W Redundant Power Supply Platinum Level (94%+)

Specification

Model i518
Processor Support 2 X 2nd Gen. Intel Xeon Scalable processors (Cascade Lake/Skylake)
Core Logic Intel® C621 chipset
Memory
  • 24x DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane DCPMM
PCIe Expansion Slot
  • 2 PCI-E 3.0 x16 (Full-height, 10.5" L)
  • 2 PCI-E 3.0 x8 (1 LP, 1 internal LP)
RAID Options SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
Drive Bays
  • 4 Hot-swap 3.5" Drive Bays
  • Optional M.2 NVMe and SATA3 ports
Networking
  • 4 RJ45 Gigabit Ethernet ports
  • 1 RJ45 Dedicated IPMI LAN port
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC
Onboard I/O
  • SATA: 4 SATA3 (6Gbps) ports
  • USB: 3 USB 3.0 ports (2 rear, 1 Type A)
  • Video: 2 VGA ports (1 rear, 1 onboard)
  • Serial Port: 1 Serial header
  • DOM: 2 SATA DOM (Disk on Module) support with embedded power
Power Supply 750W Redundant Power Supplies Platinum Level (94%) 80PLUS
Dimension / Form Factor 1U Rackmount
