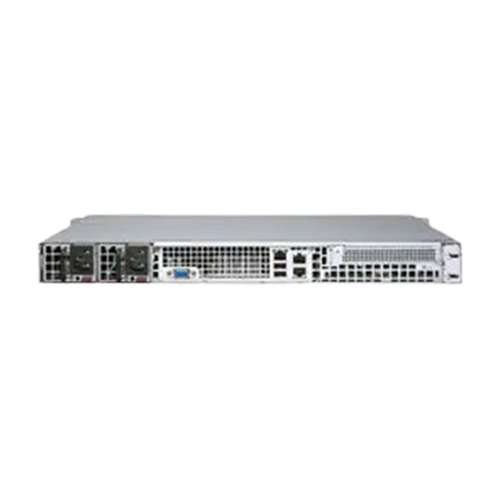

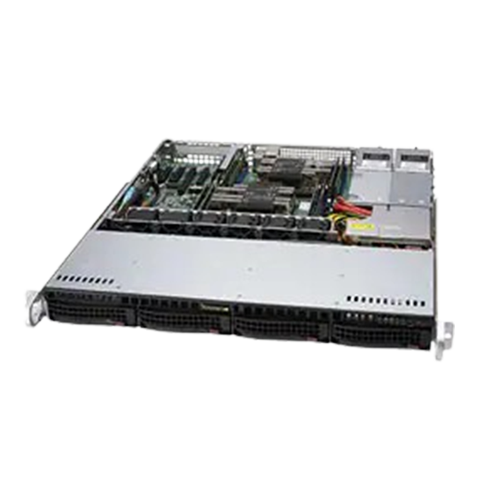

Invento i519 Purley Series

i519

Invento i519 Purley Series

Salient Features
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 8 DIMM slots
  • 1 PCI-E 3.0 x8 (FHHL) slot
  • 4 Hot-swap 3.5" SATA3 drive bays
  • 4x 4cm 22.5K RPM middle cooling fans
  • 600W Redundant Power Supplies Platinum Level Certified

Specification

Model i519
Processor Support 2 X Intel® Xeon® Scalable Proc essors, Dual UPI up to 10.4GT/s
Core Logic Intel® C621 chipset
Memory
  • 8x DIMM slots
  • Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz
PCIe Expansion Slot 1 PCI-E 3.0 x8 (FHHL) slot
RAID Options SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
Drive Bays 4 Hot-swap 3.5" SATA3 drive bays
Networking
  • Marvell 88E1512 PHY Gigabit Ethernet controller
  • Supports 1000BASE-T
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Onboard I/O
  • SATA: 4 SATA3 (6Gbps) ports
  • LAN: 2 RJ45 Gigabit Ethernet LAN ports, 1 RJ45 Dedicated IPMI LAN port
  • USB: 2 USB 2.0 ports (rear)
  • Video: 1 VGA port
  • Serial Port / Header: 1 COM port (header)
  • DOM: 2 DOM (Disk on Module) ports
Power Supply 600W Redundant Power Supplies Platinum Level Certified
Dimension / Form Factor 1U Rackmount
