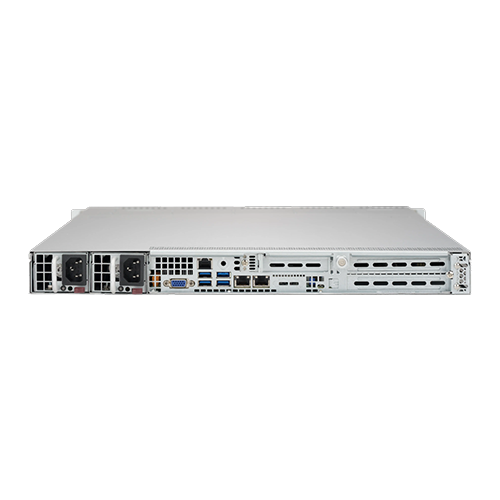

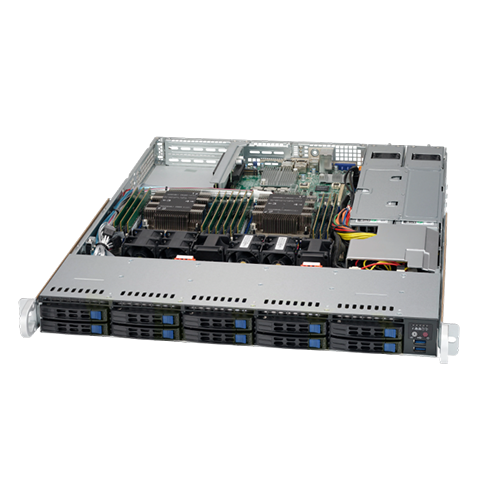

Invento i523 Purley Series

2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors. Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz, in 12 DIMM slots; Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
1 PCI-E 3.0 x32 Left Riser Slot, 1 PCI-E 3.0 x16 Right Riser Slot, 1 PCI-E 3.0 x16 for Add-On-Module (AOM)
10 x 2.5" hot-swap SAS/SATA drive bay
Dual LAN with GbE from C621
4 x 40x56mm counter-rotation PWM fan(s)
Redundant 700/750W Single Output Power Supply Platinum level

Model	i523
Processor Support	2 X 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors. Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
Core Logic	Intel® C621 chipset
Memory	12x DIMM slots; Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz; Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
PCIe Expansion Slot	PCI-E: 1 PCI-E 3.0 x32 Left Riser Slot, 1 PCI-E 3.0 x16 Right Riser Slot, 1 PCI-E 3.0 x16 for Add-On-Module (AOM) Note: (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers.) M.2: M.2 Interface: PCI-E 3.0 x4 Form Factor: 2242, 2260, 2280, 22110 Key: M-Key
RAID Options	SATA: Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Drive Bays	10 x 2.5" hot-swap SAS/SATA drive bays
Networking	Dual LAN with GbE from C621
IPMI	IPMI 2.0 ASPEED AST2500
Graphics	ASPEED AST2500 BMC
Onboard I/O	LAN: 2 RJ45 Gigabit Ethernet LAN ports USB: 6 USB 3.0 ports (4 rear + 2 headers) Video Output: 1 VGA port TPM: 1 TPM Header
Cooling Feature	4 x 40x56mm counter-rotation PWM fan(s) Optional 2 x fans for AOC cooling
Power Supply	Redundant 700/750W Single Output Power Supply Platinum level (94% Efficiency)
Dimension / Form Factor	1U Rackmount
