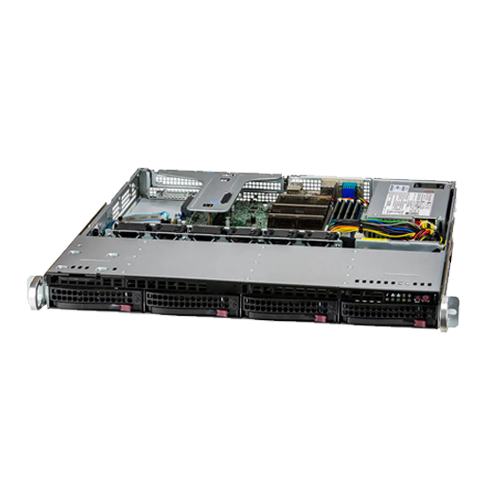

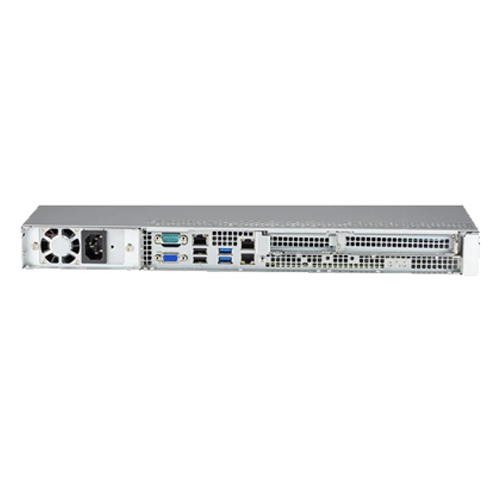

Invento i5230 Purley Series

i5230

Invento i5230 Purley Series

Salient Features
  • Single Socket H5 (LGA-1200) supports Intel® Xeon® E-2300 series, Intel® Pentium® processors
  • Up to 128GB of DDR4 ECC UDIMM memory with speeds of up to 3200MHz; 4 DIMM slots
  • 1 PCI-E 4.0 x16 or 2 PCI-E 4.0 x8 (FHHL);1 Dedicated Internal HBA slot
  • Intel® Ethernet Controller i210 2x 1GbE RJ45
  • 4x Hot-swap 3.5" SATA3 drive bays; Onboard 1x NVMe M.2
  • 4 middle cooling PWM 40x40x28mm Fan(s)
  • ACPI/APM Power Management
  • Single Platinum 350W Power Supply (94% Efficiency)

Specification

Model i5230
Processor Support 1 x Support Intel® Xeon® E-2300 series Processors and 10th Gen. Pentium® Processors Support CPU TDP 95W
Core Logic Intel® C256 Chipset
Memory
  • Memory Capacity: 4 DIMM slots
  • Up to 128GB: 4 x 32 GB DRAM
  • Memory Type: 3200/2933/2666MHz ECC DDR4 UDIMM
PCIe Expansion Slot
  • PCI-E:
    • Slot 1: PCIe 4.0 x16 or x8 (FHHL)
    • Slot 2: PCIe 4.0 x0 or x8 (LP) [Auto Switch with Slot 1]
    • Slot 3: Dedicated Internal HBA Slot
  • M.2:
    • 1 x PCI-E 3.0 x 4
    • M-key, 2280, 22110
RAID Options SATA: SATA3 (6Gbps); RAID 0/1/5/10 support (Port 0-5)
Drive Bays 4 x 3.5" SATA drive bays
Network Controller
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 1GbE LAN ports
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Onboard I/O
  • USB: 5 USB 3.2 Gen 1 port(s) (2 headers; 2 rear; 1 Type A), 6 USB 2.0 port(s) (4 headers; 2 rear)
  • SATA: 8 SATA (6Gbps) port(s) • Video Output: 1 VGA port(s)
  • Serial Port: 2 COM Port(s) (1 header; 1 rear)
  • DOM: 2 DOM (Disk on Module) port with built-in power
  • TPM: 1 TPM Header
Cooling Feature
  • 2 AOC cooling Fan(s) (optional)
  • 4 Middle cooling PWM 40x40x28mm Fan(s)
Power Supply 350W Multi-output, Platinum level (94% Efficiency)
Operating Environment
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Dimension / Form Factor 1U Rackmount
