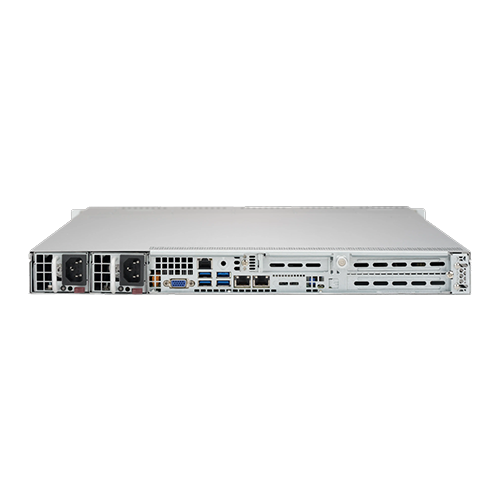

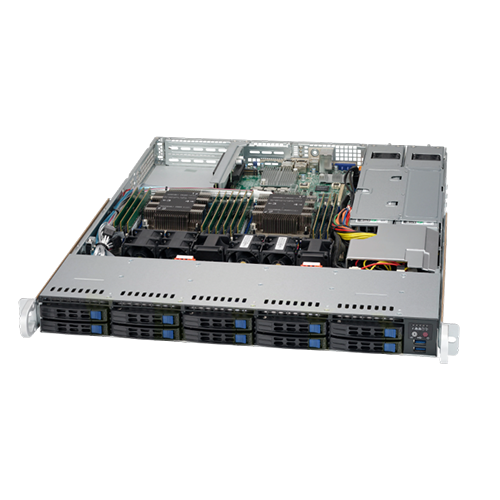

Invento i523e Purley Series

i523e

Invento i523e Purley Series

Salient Features
  • 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors., Single Socket P (LGA 3647) supported, CPU TDP support Up to 205W TDP
  • Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MHz, in 6 DIMM slots
  • 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x32 Left Riser slot
  • 10 x 2.5" hot-swap SAS/SATA drive bay
  • Dual 10GbE LAN ports
  • 4 x 40x56mm counter-rotation PWM fan(s)
  • Redundant 700/750W Single Output Power Supply Platinum level

Specification

Model i523e
Processor Support 1 X 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors., Single Socket P (LGA 3647) supported, CPU TDP support Up to 205W TDP
Core Logic Intel® C622 chipset
Memory
  • 6 x DIMM slots;
  • Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MHz
PCIe Expansion Slot
  • PCI-E:
    • 1 PCI-E 3.0 x8 (in x16 slot),
    • 1 PCI-E 3.0 x32 Left Riser Slot
  • M.2:
    • M.2 Interface: PCI-E 3.0 x4 and SATA
    • Form Factor: 2280, 22110
    • Key: M-Key
    • Double Height Connector
RAID Options SATA:
  • Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Broadcom® 3008 SW controller for 4 SAS3 (12Gbs) ports; RAID 0,1,10
Drive Bays 10 x 2.5" hot-swap SAS/SATA drive bays
Networking Dual LAN with 10GBase-T with Intel® X722 + X557
IPMI
  • IPMI 2.0
  • ASPEED AST2500
Graphics ASPEED AST2500 BMC
Onboard I/O
  • SATA: 10 SATA3 (6Gbps) ports
  • LAN: 2 RJ45 10GBase-T ports
  • USB: 7 USB 2.0 ports (2 rear + 5 headers), 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
  • Video Output: 1 VGA port
  • Serial Port / Header: 2 COM Ports (1 rear, 1 header)
  • TPM: 1 TPM Header
Cooling Feature
  • 4 x 40x56mm counter-rotation PWM fan(s)
  • Optional 2 x fans for AOC cooling
Power Supply Redundant 700/750W Single Output Power Supply Platinum level (94% Efficiency)
Dimension / Form Factor 1U Rackmount
