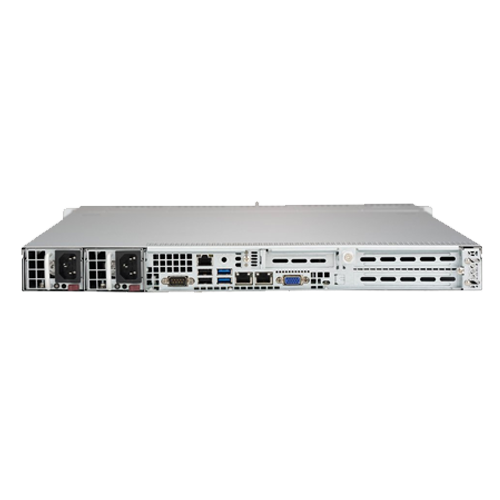

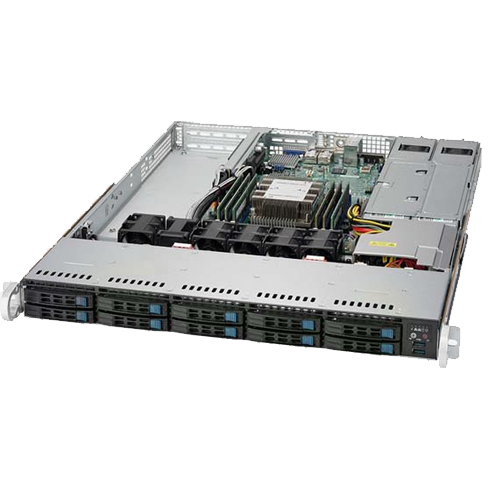

Invento i529 Purley Series

i529

Invento i529 Purley Series

Salient Features
  • Single Socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processor (Cascade Lake/Skylake)
  • Up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM; 6 x DIMM slots
  • 2 PCI-E 3.0 x16 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
  • 10 Hot-swap 2.5" drive bays (default SATA3)
  • 2x 10GBase-T ports with Intel X722 + X557
  • 500W Redundant Platinum Level Power supplies

Specification

Model i529
Processor Support 1 X 2nd Gen Intel® Xeon® Scalable processor (Cascade Lake/Skylake)
Core Logic Intel® C622 chipset
Memory
  • 6 x DIMM slots;
  • Up to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
PCIe Expansion Slot
  • PCI-Express:
    • 2 PCI-E 3.0 x16 (FHFL) slots
    • 1 PCI-E 3.0 x8 (LP) slot
  • M.2:
    • 1 x M.2 Interface: PCI-E 3.0 x4 and SATA
    • Form Factor: 2280, 22110
    • Key: M-Key
    • Double Height Connector
RAID Options SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
Drive Bays 10 Hot-swap 2.5" SATA3 drive bays • 2 NVMe with AOC (option)
Network Controller
  • Dual 10GBase-T LAN with Intel® X722 + X557
  • 1x RJ45 Dedicated IPMI LAN port
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Onboard I/O
  • SATA: 10 SATA3 (6Gbps) ports
  • LAN: 2 RJ45 10GBase-T LAN ports, 1 RJ45 dedicated IPMI LAN port
  • USB: 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A), 7 USB 2.0 ports (2 rear + 5 headers)
  • Video: 1 VGA Port
  • Serial Port / Header: 2 COM ports (1 rear, 1 header)
  • DOM: Ports default connect to hard drive bays
Cooling Feature
  • 5 Counter-rotation 40x56mm PWM fans
  • 1 Fan for Add on card cooling (option)
Power Supply 500W Redundant Platinum Level Power Supplies 80PLUS (94% Efficiency)
Dimension / Form Factor 1U Rackmount
