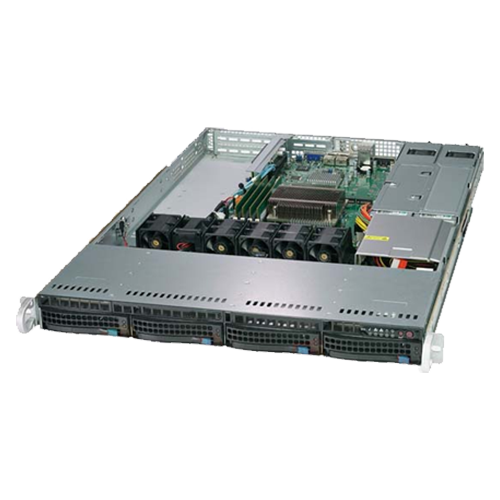

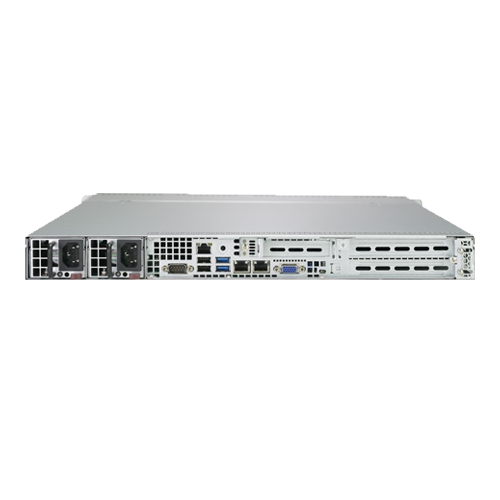

Invento i530 Purley Series

i530

Invento i530 Purley Series

Salient Features
  • Single Socket H4 (LGA 1151) supports Intel Xeon® processor E-2100, 8th Gen. Intel Core™ i3 Processors, Intel Celeron, Intel Pentium
  • Up to 128GB ECC UDIMM, up to DDR4-2666MHz; 4 DIMM slots
  • 1 PCI-E 3.0 x16 or 2 PCI-E x8, 1 PCI-E 3.0 x4 (in x8) slot
  • 4 Hot-swap 3.5" drive bays
  • Dual 1GbE LAN ports
  • 4 Counter-rotating 4cm PWM fans, 2 fans for Add on card cooling
  • 500W High efficiency (96%) Redundant Power Supply Platinum Level

Specification

Model i530
Processor Support 1 X Intel Xeon® processor E-2100, 8th Gen. Intel Core™ i3 Processors, Intel Celeron, Intel Pentium
Core Logic Intel® C246 chipset
Memory
  • 4x DIMM slots
  • Up to 128GB ECC UDIMM, up to DDR4-2666MHz
PCIe Expansion Slot
  • 1 PCI-E 3.0 x16 or 2 PCI-E x8
  • 1 PCI-E 3.0 x4 (in x8) slot
RAID Options SATA: 6 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
Drive Bays 4 x Hot-swap 3.5" drive bays
Networking
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Controllers Dual LAN with Intel® I210-AT
Graphics ASPEED AST2500 BMC
Onboard I/O
  • SATA: 6 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
  • USB: 2 USB 3.1 ports (rear), 2 USB 2.0 ports (rear)
  • Video: 1 VGA Port
  • Serial Port / Header: 1 COM port (header), 1 COM port (rear)
  • TPM: 1 TPM 2.0 Header
Power Supply 500W High efficiency (96%) Redundant Power supply Unit Platinum Level 80PLUS
Dimension / Form Factor 1U Rackmount
