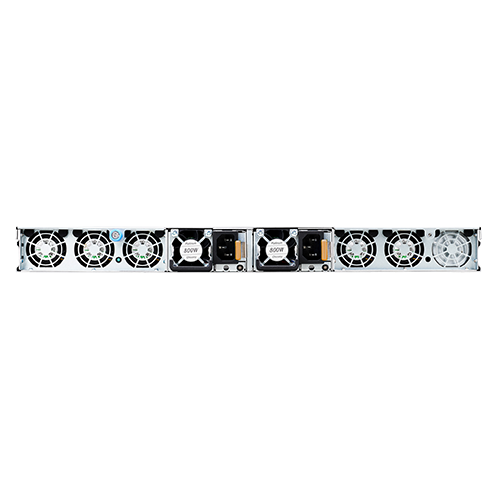

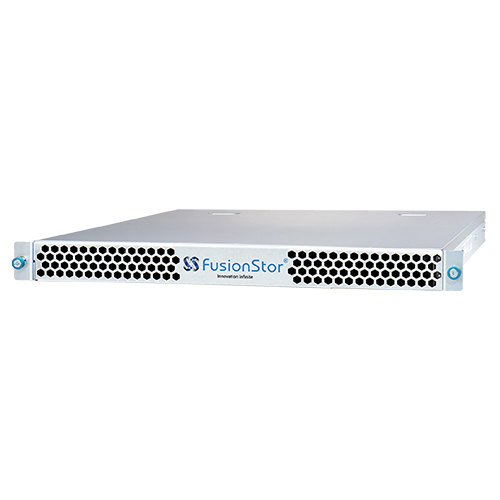

Invento i5302 EPYC Series

i5302

Invento i5302 EPYC Series

Salient Features
  • Single Socket AMD EPYC™ 7003 Series Processor
  • 16 DIMM slots supporting up to 4,096GB RDIMM
  • 1 No. PCIe Gen.4 x16 slot (FH/HL)
  • 2 Nos. Hot-swap, tool-less 2.5” NVMe U.2 trays
  • 5 heavy duty fans with optimal fan speed control
Key Applications
  • Enterprise Server
  • Data Center

Specification

Model i5302 EPYC
Form Factor
  • 1U Rackmount
  • Enclosure: 43.2mm (H) x 440mm (W) x 697mm (D)
Processor
  • AMD Socket SP3
  • AMD EPYC™ 7003 Series Processor
  • Max up to 240W (cTDP)
System Memory
  • 16 DIMM slots
  • Support up to 4,096GB RDIMM/LRDIMM DDR4 3200 memory
  • 8 Channels per CPU
Drive Bays
  • 2 Nos. Hot-swap, tool-less 2.5” NVMe U.2 trays
  • 1 No. 22110/2280 NVMe (PCIe 4.0 x4)/SATA M.2 slots
Expansion Slots
  • 1 No. PCIe Gen.4 x16 slot (FH/HL)
  • 1 No. PCIe 4.0 x16 OCP 3.0 mezz. slot for optional LAN mezz. up to 200Gb/s
On-Board Devices Chipset: System on Chip (SoC)
Input / Output
  • LAN: 1 No. 1000Base-T dedicated IPMI port
  • USB: 1 No. USB3.2 Gen.1 header (Type-A), 2 Nos. USB3.2 Gen.1 headers
  • Video: 1 VGA port
Button & LEDs
  • 1 x PWR BTN with LED
  • 1 x Front UID BTN with LED
System Cooling 5 x system cooling heavy duty fan(s)
Power Supply 800W (1+1) Redundant Platinum Level Power Supplies
Security TPM Header
System BIOS BIOS Type: AMI 64MB
Management IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
Operating Environment
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
