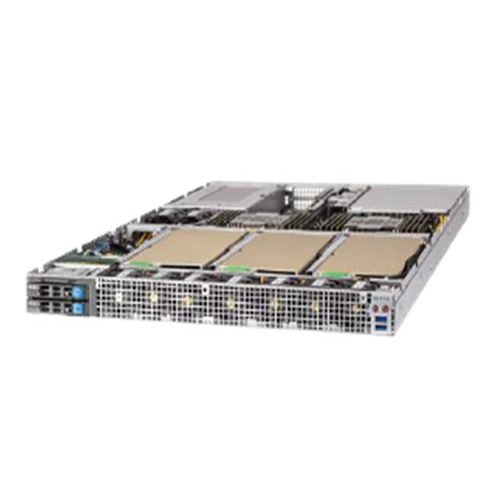

Invento i5302 Series

System with 4 PCIe GPUs
Dual Socket P+ (LG-4189) 3rd Gen Intel® Xeon® Scalable processors 3 UPI up to 11.2GT/s Support CPU TDP 220W
Intel® C621A chipset
Up to 4TB DRAM; Up to 4TB Intel® Optane™ Persistent Memory (up to 6TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM/RDIMM; in 16 DIMM slots
6 PCI-E Gen 4.0 x16 (4 FHFL & 2 LP)
2 x 10GbE BaseT port(s)
M.2 NVMe Supported, 2x 2.5" NVMe Hot-swap drive bays, 2x 2.5" SATA Internal Fixed drive bays
9 nos. Cooling fans
2 x 2000W Redundant Power Supplies Titanium Level (96%)

Model	i5302
Processor Support	2 X Dual Socket P+ (LG-4189) 3rd Gen Intel® Xeon® Scalable processors 3 UPI up to 11.2GT/s Support CPU TDP 220W
Core Logic	Intel® C621A chipset
Memory	16 DIMM slots; Up to 4TB DRAM; Up to 4TB Intel® Optane™ Persistent Memory (up to 6TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM/RDIMM Intel® Optane™ persistent memory 200 series
PCIe Expansion Slot	6 PCI-E Gen 4.0 x16 (4 FHFL & 2 LP) Slot 1: PCI-E 4.0 x16 FHFL Slot 2: PCI-E 4.0 x16 FHFL Slot 3: PCI-E 4.0 x16 FHFL Slot 4: PCI-E 4.0 x16 FHFL Slot 5: PCI-E 4.0 x16 LP Slot 6: PCI-E 4.0 x16 LP
RAID Options	SATA: SATA3 (6Gbps); RAID 0/1/5/10 support
Drive Bays	1 M.2 NVMe Supported 2x 2.5" NVMe Hot-swap drive bays 2x 2.5" SATA Internal Fixed drive bays
Networking	2 x 10GbE BaseT port(s) 1 RJ45 Dedicated IPMI LAN port
Cooling Features	9 counter rotating fans w/ Optimal Fan Speed Control
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2600 BMC
Onboard I/O	USB: 4 USB 3.0 port(s) (2 Rear + 2 Front) Video: 1 VGA port(s)
Power Supply	2 x 2000W Redundant Power Supplies Titanium Level (96%)
Dimension / Form Factor	1U Rackmount
