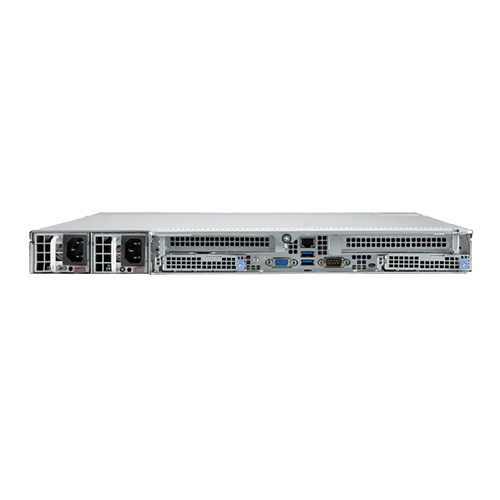

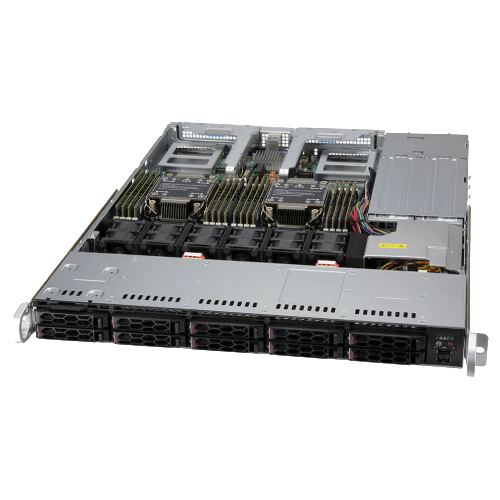

Invento i5314

i5314

Invento i5314

Salient Features
  • Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  • Intel® C621A chipsetv
  • Up to 4TB ECC RDIMM/LRDIMM, DDR4-3200MHz, 16 DIMM slots
  • 2 PCIe 4.0 x16 FHHL; 2 PCIe 3.0 x2 NVMe M.2
  • Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN
  • 10 x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  • 6 Nos. counter-rotation PWM fan(s)
  • 860W Redundant power supply Platinum level (94%)

Specification

Model i5314
Processor Support
  • 2 X 3rd Gen Intel® Xeon® Scalable processors Support CPU TDP 270W, Socket P+ (LGA-4189)
  • Up to 40C/80T; Up to 60MB Cache per CPU
Core Logic Intel® C621A chipset
Memory
  • 16 DIMM slots;
  • Up to 4TB 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
PCIe Expansion Slot
  • PCIe Slots:
    • 2 PCIe 4.0 x16 FHHL;
    • 2 PCIe 4.0 x16 AIOM (OCP 3.0)
  • M.2 Slots:
    • M.2 Interface: 2 PCIe 3.0 x2
    • Form Factor: 2260/2280
    • Key: M-Key
RAID Options
  • SATA: SATA3 (6Gbps); RAID 0/1/5/10 support
  • NVMe: NVMe; RAID 0/1/5/10 support (VROC HW key required for this)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2600 BMC
Drive Bays 10 x Front hot-swap 2.5" NVMe*/SAS*/SATA drive bays
Networking
  • Dual AIOM with NCSI (OCP 3.0) for networking
  • 1 dedicated IPMI LAN
Onboard I/O
  • USB: 2 USB 3.0 port(s) (2 rear), 2 USB 2.0 ports(front)
  • Video: 1 VGA port(s)
  • Serial Port: 1 COM Port(s) (1 rear)
  • DOM: 1 DOM (Disk on Module) port
  • TPM 2.0 header
Cooling Feature 6 counter-rotating 4 cm PWM fans with optimal fan speed control
Operating Environment
  • Operating Temperature Range: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-Operating Temperature Range: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity Range: 8% to 90% (non-condensing)
  • Non-Operating Relative Humidity Range: 5% to 95% (non-condensing)
Other Features WOL, UID, RoHS, Node Manager Support, Chassis intrusion detection (optional), ACPI power management, Silicon Root of Trust (RoT) – NIST 800-193 Compliant, NCSI header, Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, System Lockdown
Power Supply 860W (1+1) Redundant power supply Platinum level (92% Efficiency)
Dimension / Form Factor 1U Rackmount
