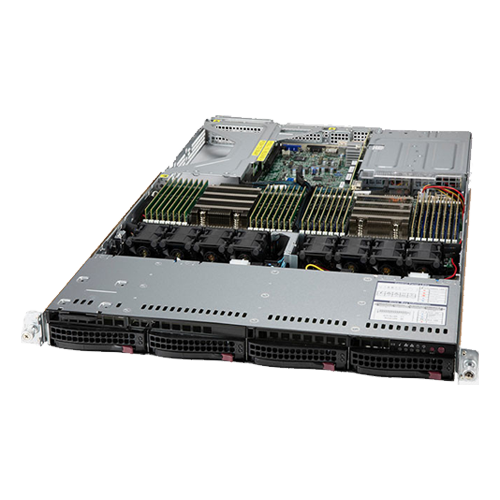

Invento i5314 EPYC Series

i5314

Invento i5314 EPYC Series

Salient Features
  • Dual AMD EPYC™ 7003/7002 Series Processors
  • Up to 8TB Registered ECC DDR4 3200MHz in 32 DIMMs
  • 2 PCI-E 4.0 x16 (FH/9.5"L) slots, 1 PCI-E 4.0 x16 (LP) slot, 1 PCI-E 4.0 x16 (internal proprietary LP slot)
  • 2 USB 3.0 ports
  • Dual 10Gigabit LAN ports
  • 4 hot-swap 3.5" SATA3 by default or 4 NVMe (optional supported)
  • 1000W Redundant Power Supplies Titanium Level (96%+ Efficiency)

Specification

Model i5314
Processor Support
  • 2 x Dual AMD EPYC™ 7003/7002 Series Processors
  • Socket SP3
  • Supports CPU TDP up to 280W
Core Logic System on Chip
Memory
  • 32 x DIMM slots;
  • Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM 8-channel memory bus
  • DDR4 3200 MHz Registered ECC
  • Corrects single-bit errors Detects double-bit errors (using ECC memory)
Expansion Slot
  • PCI-E Slots
    • 2 PCI-E 4.0 x16 (FH/HL 9.5") slots
    • 1 PCI-E 4.0 x16 (LP) slot
    • 1 PCI-E 4.0 x16 (internal proprietary LP slot)
Drive Bays
  • 4 hot-swap 3.5" SATA3 by default
  • OR 4 NVMe (optional supported)
  • OR 4 SAS3 ports (SAS Add-on card is optional)
Network Controller
  • Dual 10GBase-T LAN ports via Intel® X710-AT2
  • 1 RJ45 Dedicated IPMI LAN port
Graphics ASPEED AST2500 BMC
IPMI Integrated IPMI 2.0 + KVM with dedicated LAN
Cooling Feature
  • 8 heavy-duty PWM fans with optimal fan speed control
  • 2 Air Shroud (optional)
Onboard I/O
  • SATA: 4 SATA3 (6 Gbps) ports
  • USB: 3 USB 3.0 ports (2 rear + 1 Type A)
  • Video Output: 1 VGA port
  • SAS: 4 SAS3 ports support via optional Add-on Card
  • NVMe: 4 NVMe support with optional cables
  • Others: 1 COM port (rear), 2 SATA DOM power connector, TPM 1.2 header
Power Supply 1000W Redundant Power Supplies Titanium Level (96%+ Efficiency)
Dimension / Form Factor 1U Rackmount
