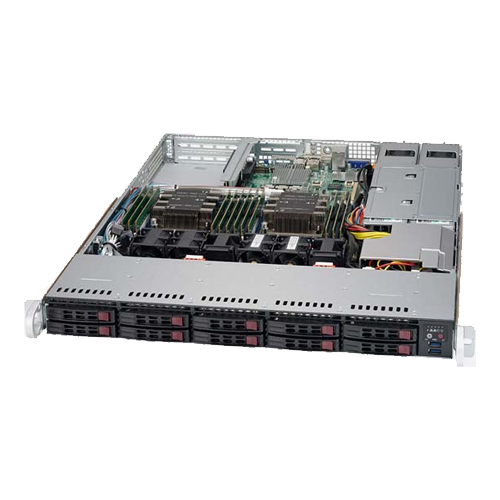

Invento i531e Purley Series

i531e

Invento i531e Purley Series

Salient Features
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 1.5TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 12 DIMM slots
  • 2 PCI-E 3.0 x16 (FHHL) slots, 1 PCI-E 3.0 x8 (LP) slot, 1 PCI-E 3.0 x16 for Add-on-Module (Support SAS3 Storage controller), 1 PCI-E 3.0 x4 NVMe M.2 slot
  • 10 Hot-swap 2.5" SAS/SATA HDD bays (default 8 SATA3, 2 NVMe or SATA3)
  • 2x 10GBase-T LAN ports via Intel® X722
  • 4 Counter-rotating 4cm PWM fans, 2 fans for Add on card cooling
  • 750W Redundant Power Supplies Platinum Level High-efficiency

Specification

Model i531e
Processor Support 2 X Intel® Xeon® Scalable Proc essors, Dual UPI up to 10.4GT/s
Core Logic Intel® C622 chipset
Memory
  • 12x DIMM slots;
  • Up to 1.5TB ECC 3DS LRDIMM, up to DDR4-2666MHz
PCIe Expansion Slot
  • 2 PCI-E 3.0 x16 (FHHL) slots,
  • 1 PCI-E 3.0 x8 (LP) slot,
  • 1 PCI-E 3.0 x16 for Add-on-Module (Support SAS3 Storage controller),
  • 1 PCI-E 3.0 x4 NVMe M.2 slot
RAID Options SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
Drive Bays
  • 8 SATA3 (6Gbps) ports and
  • 2 NVMe/SATA3 hybrid ports (connected to onboard storage controller)
Networking
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC
Network Controllers Dual LAN with 10Gbase-T from C622
Onboard I/O
  • SATA: 8 SATA3 (6 Gbps) ports and 2 NVMe/SATA3 hybrid ports
  • USB: 6 USB 3.0 ports (4 rear, 2 front via header)
  • Video: 1 VGA port
  • DOM: 2 DOM (Disk on Module) ports
Power Supply 750W Redundant Power Supplies Platinum Level High-efficiency 80PLUS (94% efficiency)
Dimension / Form Factor 1U Rackmount
