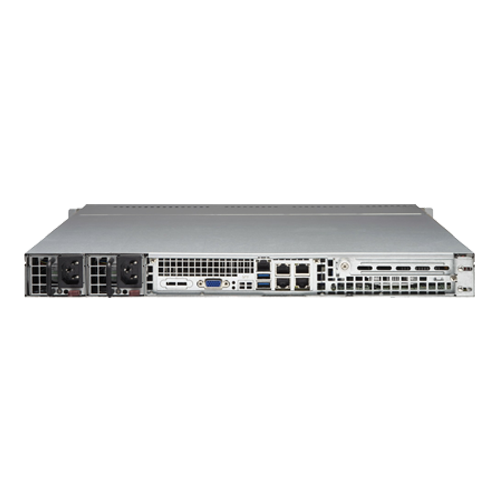

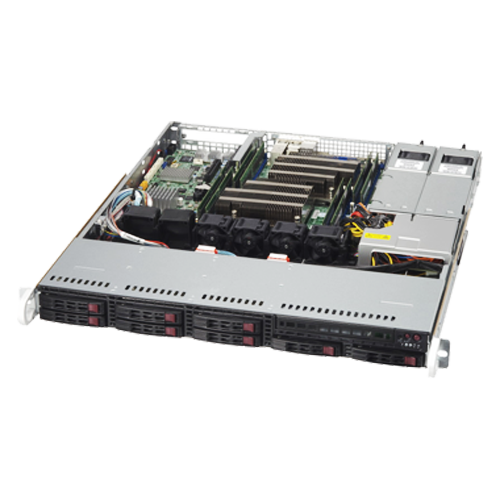

Invento i533 Purley Series

i533

Invento i533 Purley Series

Salient Features
  • Intel® Xeon® Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 165W
  • Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 8x DIMM slots
  • 2 PCI-E 3.0 x8 (in x16), 4 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
  • 2 GbE LAN ports
  • M.2 NGFF connector
  • 4 PCI-E 3.0 x16 slots
  • 8 x 2.5" hot-swap SAS/SATA drive bay
  • 600W Redundant Single Output Power Supply (94%)

Specification

Model i533
Processor Support 1 X Intel® Xeon® Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 165W
Core Logic Intel® C621
Memory
  • 8 x DIMM slots;
  • Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz
PCIe Expansion Slot
  • 2 PCI-E 3.0 x8 (in x16),
  • 4 PCI-E 3.0 x8,
  • 1 PCI-E 3.0 x4 (in x8)
RAID Options SATA: Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Drive Bays 8 x 2.5" hot-swap SAS/SATA drive bay
Networking 2 RJ45 Gigabit Ethernet LAN ports
IPMI ASPEED AST2500
Power Configuration
  • ACPI Power Management
  • Power-on mode for AC power recovery
Onboard I/O
  • SATA: 8 SATA3 (6Gbps) port
  • USB: 8 USB 2.0 ports (2 rear + 6 headers),5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
  • Video Output: 1 VGA port
  • Serial Port / Header: 2 COM Ports (1 rear, 1 header)
  • TPM: TPM Header
Power Supply 600W Redundant Single Output Power Supply Platinum Certified (94% Efficiency)
Dimension / Form Factor 1U Rackmount
