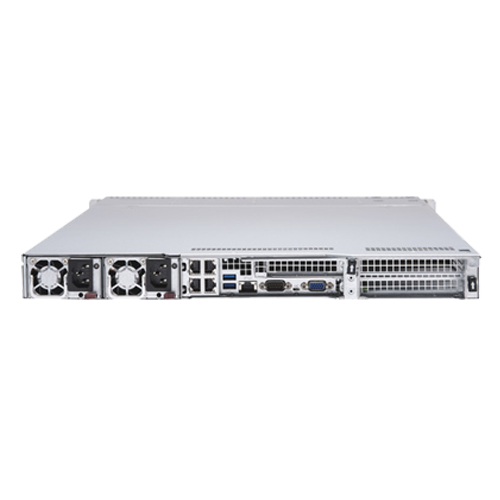

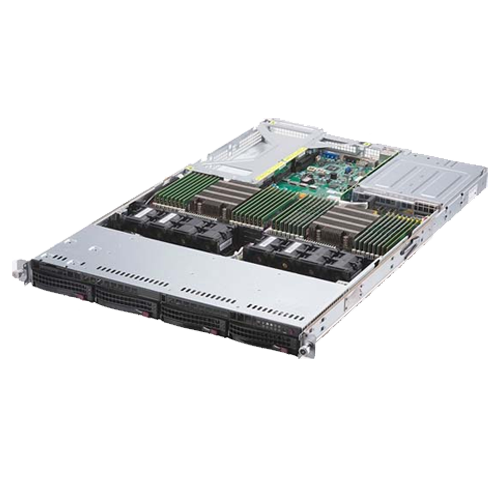

Invento i5331 EPYC Series

i5331

Invento i5331 EPYC Series

Salient Features
  • Dual AMD EPYC™ 7001/7002* Series Processors (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
  • Up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs (7001 Processors), 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs (Board revision 2.x required + 7002 Processors)
  • 2 PCI-E x16 (FH/9.5"L) slots, 2 PCI-E x8 slots (1 LP, 1 internal proprietary LP slot)
  • 3 USB 3.0 ports (2 rear + 1 Type A)
  • Quad Gigabit LAN ports via Intel i350AM4
  • ASPEED AST2500 BMC
  • 4 hot-swap 3.5" SATA3 by default or 4 NVMe (optional supported)
  • 1000W Redundant Power Supplies Titanium Level (96%+ Efficiency)

Specification

Model i5331
Processor Support 2 x AMD EPYC™ 7001/7002* Series Processors (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
Core Logic System on Chip
Memory
  • 32 x DIMM slots;
  • Up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs (7001 Processors)
  • Up to 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs (Board revision 2.x required + 7002 Processors)
Expansion Slot
  • PCI-E Slots
    • 2 PCI-E x16 (FH/HL 9.5") slots
    • 2 PCI-E x8 slots (1 LP, 1 internal proprietary LP slot)
Drive Bays
  • 4 hot-swap 3.5" SATA3 by default
  • OR 4 NVMe (optional supported)
  • OR 4 SAS3 ports (SAS Add-on card is optional)
Network Controller
  • Quad Gigabit LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
Graphics ASPEED AST2500 BMC
IPMI Integrated IPMI 2.0 + KVM with dedicated LAN
Cooling Feature
  • 8 heavy-duty PWM fans with optimal fan speed control
  • 2 Air Shroud
Onboard I/O
  • SATA: 4 SATA3 (6 Gbps) ports
  • USB: 3 USB 3.0 ports (2 rear + 1 Type A)
  • Video Output: 1 VGA port
  • SAS: 4 SAS3 ports support via optional Add-on Card
  • NVMe: 4 NVMe support with optional cables
  • Others: 1 COM port (rear), 2 SATA DOM power connector, TPM 1.2 header
Power Supply 1000W Redundant Power Supplies Titanium Level (96%+ Efficiency)
Dimension / Form Factor 1U Rackmount
