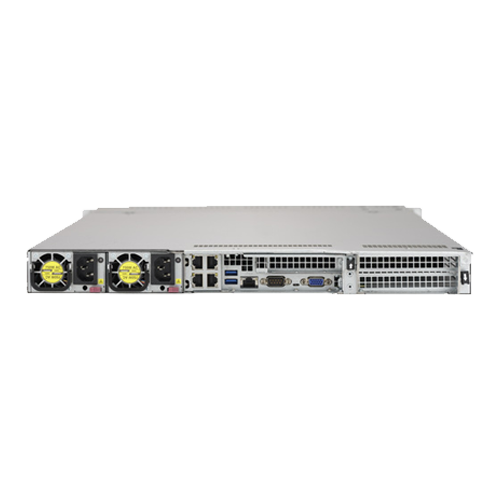

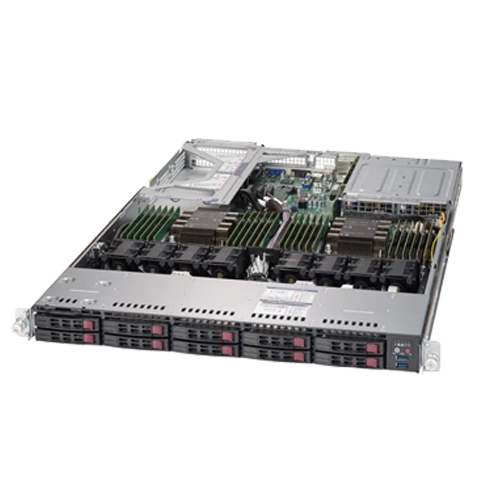

Invento i534e Purley Series

Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24 DIMM slots
2 PCI-E 3.0 x16 slots (FH, 10.5" L), 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
10 Hot-swap 2.5" Drive Bays; 10 SATA3 (2 hybrid ports - 2 NVMe opt.); Optional M.2 NVMe and SATA3 ports
4 Gigabit Ethernet ports
8 heavy duty fans w/ optimal fan speed control
750W Redundant Power Supplies Platinum Level (94%+)

Model	i534e
Processor Support	2 X Intel® Xeon® Scalable Proc essors, Dual UPI up to 10.4GT/s
Core Logic	Intel® C621 chipset
Memory	24 x DIMM slots; Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz
PCIe Expansion Slot	2 PCI-E 3.0 x16 slots (FH, 10.5" L), 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
RAID Options	SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
Drive Bays	10 Hot-swap 2.5" Drive Bays; 10 SATA3 (2 hybrid ports - 2 NVMe opt.) Optional M.2 NVMe and SATA3 ports
Networking	4 RJ45 Gigabit Ethernet ports 1 RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500 BMC
Onboard I/O	SATA: 10 SATA3 (6Gbps) ports SAS: 8 SAS3 ports support via optional Add-on Card USB: 5 USB 3.0 ports (2 rear, 2 front, 1 Type A) Video: 2 VGA ports (1 rear, 1 onboard) Serial Port: 1 Serial header
Power Supply	750W Redundant Power Supplies Platinum Level (94%+ Efficiency) Titanium Level
Dimension / Form Factor	1U Rackmount
