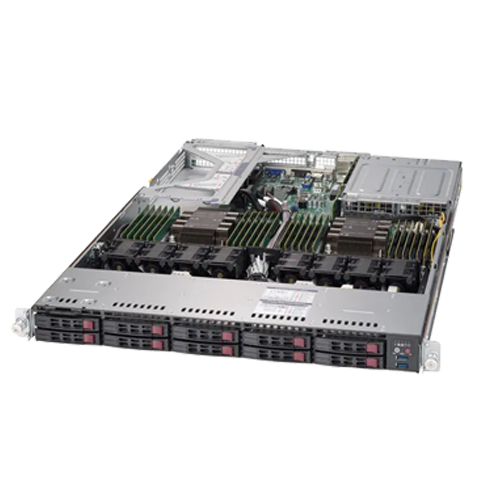

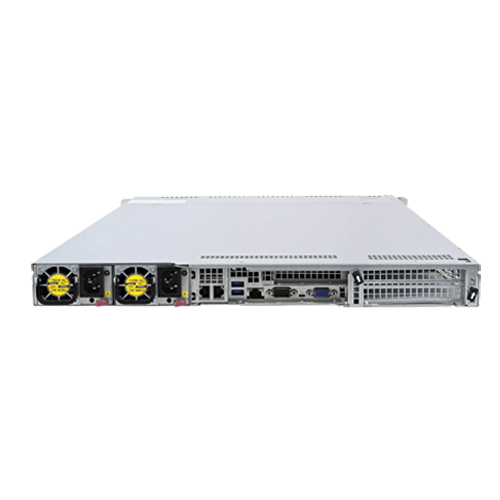

Invento i535 Purley Series

Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
2 PCI-E 3.0 x16 slots (FH, 10.5" L), 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
10 Hot-swap 2.5" drive bays: 10 SAS3/SATA3 ports via Expander and AOC; Optional M.2 NVMe and SATA3 ports
2 x 10GBase-T Ethernet ports
8 heavy duty fans w/ optimal fan speed control
750W Redundant Power Supplies Platinum Level (94% Efficiency)

Model	i535
Processor Support	2 X 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
Core Logic	Intel® C621 chipset
Memory	24 x DIMM slots; Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
PCIe Expansion Slot	2 PCI-E 3.0 x16 (Full-height, 10.5" L) 2 PCI-E 3.0 x8 (1 LP, 1 internal LP)
RAID Options	SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
Drive Bays	10 Hot-swap 2.5" drive bays: 10 SAS3/SATA3 ports via Expander and AOC; Optional M.2 NVMe and SATA3 ports
Networking	2 x 10GBase-T ports via add on card (Intel® X540)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	Aspeed AST2500 BMC
Onboard I/O	SAS: 10 SAS3 ports support via expander and storage Add-on Cards LAN: 2 RJ45 10GBase-T Ethernet ports, 1 RJ45 Dedicated IPMI LAN port USB: 5 USB 3.0 ports (2 rear, 2 front, 1 Type A) Video: 2 VGA ports (1 rear, 1 onboard) Serial Port: 1 Serial header
Cooling Feature	Fans: 8 Heavy duty fans with optimal fan speed control Air Shroud: 1 Air Shroud
Power Supply	750W Redundant Power Supplies Platinum Level (94% Efficiency) 80PLUS
Dimension / Form Factor	1U Rackmount
