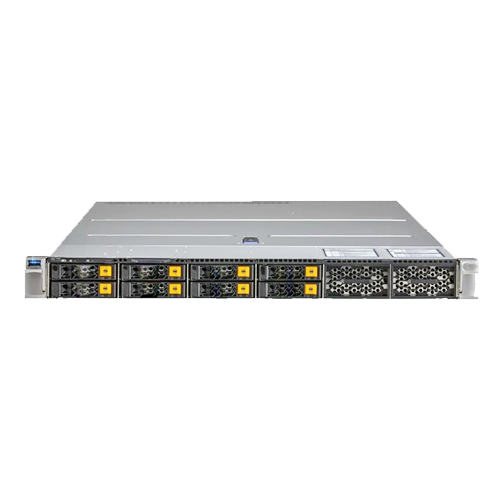

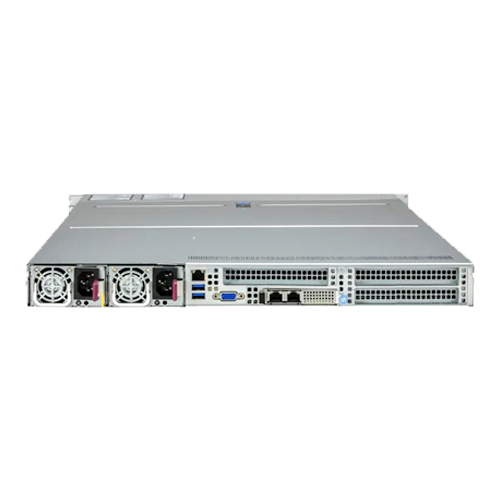

Invento i5406 Series

i5406

Invento i5406 Series

Salient Features
  • Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
  • Intel C741® Chipset
  • Up to 8TB 3DS ECC RDIMM, DDR5-5600MT/s in 32 DIMM slots
  • 3 PCIe 5.0 x16 slots with support for GPU/Accelerator cards
  • Flexible networking options
  • 8x 2.5" hot-swap NVMe/SATA/SAS drive bays
  • 7. 8 heavy duty counter-rotation PWM fan(s)
  • 800W/1200W Redundant power supply Titanium level (96%)

Specification

Model i5406
Processor Support
  • 2 X 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors;
  • Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
  • Up to 64C/128T; Up to 320MB Cache per CPU
  • Note:
    • Supports up to 350W TDP CPUs (Air Cooled)*
    • Supports up to 350W TDP CPUs (Liquid Cooled)
    • *Air Cooled CPUs with TDP over 250W only supported under specific conditions. Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Core Logic Intel® C741 chipset
Memory
  • 32 DIMM slots;
  • Up to 8TB 3DS ECC RDIMM, DDR5-5600MT/s
  • 5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC) or 4400 MT/s (2DPC)
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
Expansion Slot
  • PCI-E Slots:
    • 1 PCIe 5.0 x16 FHHL slot(s)
    • 2 PCIe 5.0 x16 FH/10.5"L slot(s)
    • 1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
  • M.2:
    • 2 M.2 NVMe/SATA slot(s) (B+M-key 2280/22110)
RAID Options
  • SATA: SATA (6Gbps) ; RAID 0/1/5/10 support
  • NVMe: RAID 0/1/5/10 support (additional Intel® VROC RAID key required)
Drive Bays
  • Default: Total 8 bay(s): 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bay(s)
  • Option A: Total 12 bay(s): 12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bay(s)
Networking
  • Flexible Networking option
  • 1 dedicated IPMI management LAN port
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2600 BMC
Security
  • Hardware:
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
  • Features:
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
Cooling Feature
  • 8 counter-rotating 40x40x56mm Fan(s)
  • Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional)
Onboard I/O
  • USB: 2 USB 2.0 port(s) (rear), 1 USB 3.0 port(s) (front)
  • Video Output: 1 VGA port(s)
  • TPM: 1 TPM Header
Power Supply 800W/1200W Redundant power supply Gold level (96%)
Chassis
  • Operating Temperature Range: 10°C - 35°C (50°F - 95°F)
  • Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F)
  • Operating Relative Humidity Range: 8% - 90% (non-condensing)
  • Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)
Dimension / Form Factor 1U Rackmount
