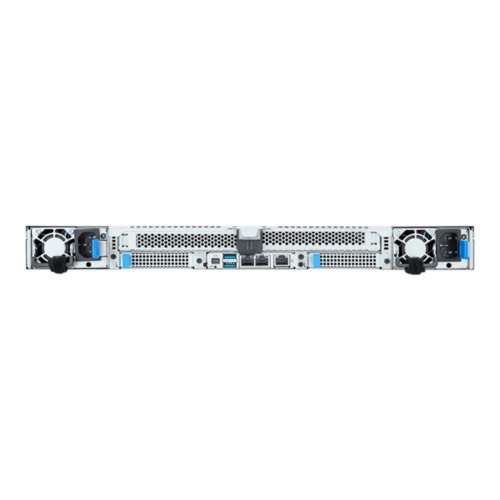

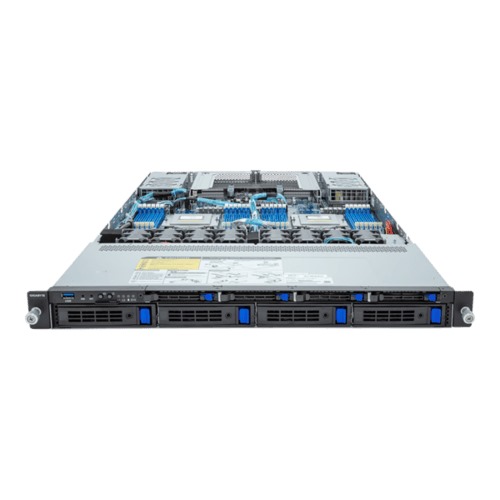

Invento i5408 EPYC Series

Supports Dual AMD EPYC™ 9004 Series Processors (with AMD 3D V-Cache™ Technology)
Up to 24 Memory DIMM slots
4 x 3.5"/2.5" SATA/SAS hot-swappable bays
4 x 2.5" 9.5mm SATA/SAS hot-swappable bays
2 x 1Gb/s BASE-T LAN ports
Upto 8 Nos. x heavy duty PWM fans with optimal fan speed controlled
1200W/1600W Redundant Power Supplies (Platinum Level)

Model	i5408 EPYC
Processor Support	2 X AMD EPYC 9004 Series Processors AMD EPYC 9004 Series Processors with AMD 3D V-Cache Technology Dual processor, 5nm technology *Up to 128 cores, 256 threads per processor
Core Logic	System on Chip
Memory	24 x DIMM slots; DDR5 memory supported only Memory speed: Up to 4800 MT/s
PCIe Expansion Slot	PCI-Express: 2 x FHHL PCIe Gen5.0 x16 slots 2 x OCP 3.0 Gen5.0 x16 slots M.2: 3 x M.2 slots with PCIe Gen3 x4 and x2 interface
Graphics	Aspeed AST2600 BMC port(s) 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp
Drive Bays	4 x 3.5"/2.5" SATA/SAS hot-swappable bays 4 x 2.5" 9.5mm SATA/SAS hot-swappable bays
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Cooling Features	8 x 40x40x56mm (32,000rpm) heavy duty fans with optimal fan speed control
Onboard I/O	USB: 3 x USB 3.2 Gen1 2 x 1G Ethernet Ports, 1 x RJ45 Dedicated IPMI LAN port Video Output: 1 x mDP ports 1 COM port TPM: TPM Header
Power Supply	1200W/1600W Redundant Power Supplies (Platinum Level) 92-94% Efficiency
Dimension / Form Factor	1U Rackmount
