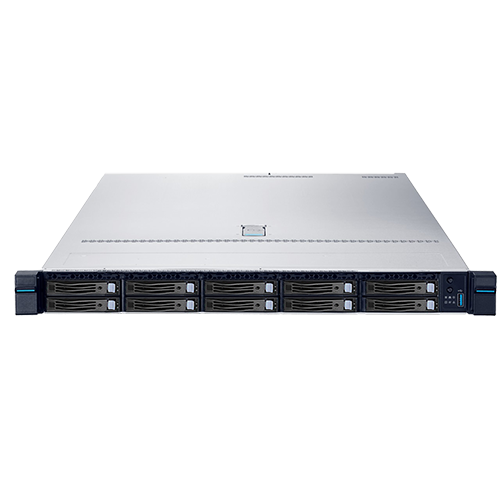

Invento i5409 EPYC Series

Invento i5409 EPYC Series

i5409 EPYC Series

Invento i5409 EPYC Series

Key Applications
  • Virtualization, HPC, High End Enterprise Server, Software - Defined Storage
Salient Features
  • Dual Socket, supports AMD EPYCT™ 9004 (with AMD 3D V-Cache™ Technology)
  • 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 12 hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA drive bays
  • 2 FHHL PCIe5.0 x16, 1 OCP NIC 3.0 (PCIe5.0 x16)
  • Supports 2 M.2 (PCIe3.0 x4)

Specification

Model i5409 EPYC Series
Processor Support Supports AMD EPYCT™ 9004 (with AMD 3D V-Cache™ Technology)
System Memory
  • Up to 24 x DDR5 DIMMs
  • 12 x DDR5 memory channels per processor, and up to 4800MHz
  • RDIMMs and 3DS RDIMMs supported
Drive Bays
  • Front: 4 x 3.5-inch + 4 x 2.5-inch SATA/SAS/NVMe drives OR
    4 x 3.5-inch SATA/SAS/NVMe drives +2 x E1.S + 2 x M.2 SSDs OR
    10/12 x 2.5-inch SATA/SAS/NVMe drives
  • Internal: 2 x SATA M.2 SSDs or 2 x PCIe M.2 SSDs
Expansion Slots
  • Supports up to 2x PCIe Gen5 slots
  • 2 x OCP3.0 slots
On-Board Devices System on chip
Graphics ASPEED AST2600
Input/Output
  • Front: 1 x USB 2.0 port, 1 x USB 3.0 port, 1 x VGA port
  • Rear: 2 x USB 3.0 ports, 1 x VGA port, 1 x BMC management network port, 1x micro USB port
System Cooling 8 x hot-swap fans with N+1 redundancy
Power Supply 1000W/1300W/1600W/2000W CRPS standard PSUs with 1+1 redundancy Platinum Power Supplies
Security Features TPM 2.0, TCM, BMC/BIOS chip-level redundancy, power capping, etc.
Management Integrated with 1 x independent 1000 Mbps network port, dedicated for IPMI remote management
PC Health Monitoring
  • CPU: Monitors for CPU Cores, Chipset Voltage, Memory
  • FAN:
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
  • Temperature:
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
Operating Environment
  • Operating Temperature: 10°C to 35°C, Non operation temperature: (-40°F to 70°F)
  • Working relative humidity: 20% to 90% (non-condensing)
Dimension / Form Factor
  • 1U Rackmount
  • Enclosure: 43mm (H) x 438mm (W) x 800/850mm (D)
