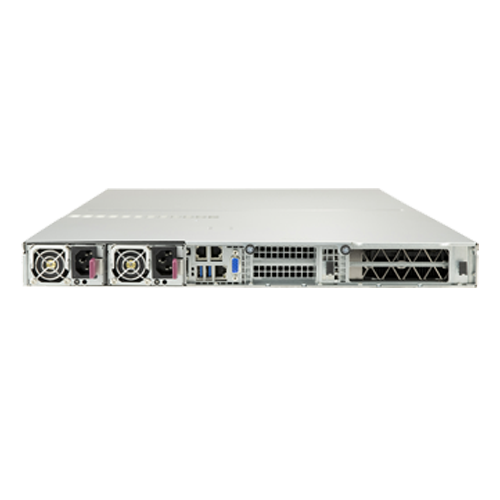

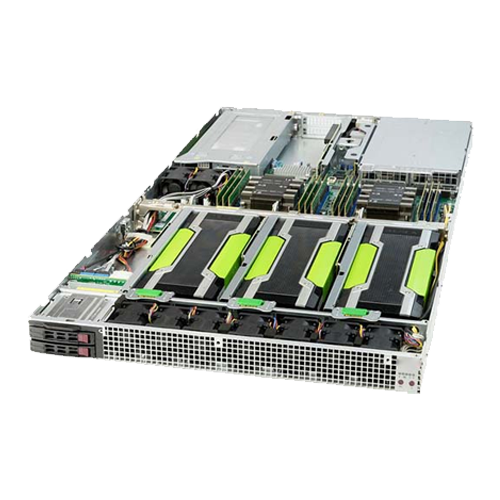

Invento i541 Purley Series

i541

Invento i541 Purley Series

Salient Features
  • Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • Up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM; 12 DIMM slots
  • 4 PCI-E 3.0 x16 (FHFL) slots, 2 PCI-E 3.0 x16 (LP) slots
  • 2 Hot-swap 2.5" SAS/SATA drive bays, 2 Internal 2.5" drive bays
  • 2 x 10GBase-T LAN ports via Intel X540
  • 9 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control
  • 2000W Redundant Power Supplies Titanium Level (96%)
    • Supports up to 4 NVIDIA® GPUs in 1U
    • Support Active/Passive GPUs
    • GPU health monitoring with Fan speed control

Specification

Model i541
Processor Support 2 X 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
Core Logic Intel® C621 chipset
Memory
  • 12 x DIMM slots;
  • Up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
PCIe Expansion Slot
  • 4 PCI-E 3.0 x16 (FHFL) slots,
  • 2 PCI-E 3.0 x16 (LP) slots
RAID Options SATA3 (6Gbps) with RAID 0, 1, 5, 10
Drive Bays 2 Hot-swap 2.5" SAS/SATA drive bays, 2 Internal 2.5" drive bays
Networking
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC
Onboard I/O
  • SATA: 4 SATA3 (6Gbps) ports
  • USB: 2 USB 3.0 ports (rear)
  • Video: 1 VGA port
  • Serial Header: 1 Fast UART 16550 header
Power Supply 2000W Redundant Power Supplies Titanium Level (96%)
Other Features Power Configurations
  • ACPI / APM Power Management
Dimension / Form Factor 1U Rackmount
