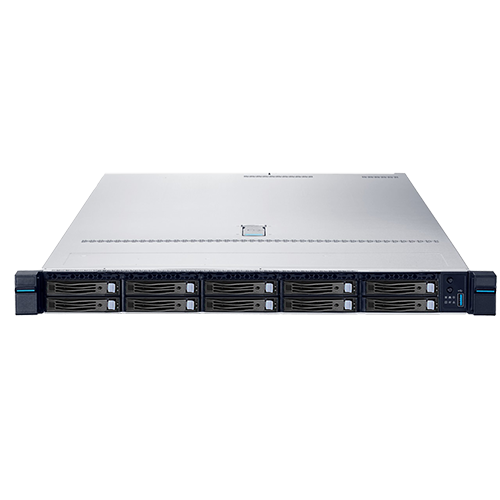

Invento i5415 EPYC

Invento i5415 EPYC

i5415 EPYC

Invento i5415 EPYC

Salient Features
  • Supports Single AMD EPYC™ 9005/9004 Series Processors
  • 12 DIMM slots
  • 2 PCIe 5.0 x16 FHHL Slots
  • 12 x 2.5" hot-swap hybrid Gen5 NVMe/SATA/SAS drive bays
  • 8 Nos. counter-rotation PWM fan(s)
  • IPMI 2.0, KVM with dedicated LAN
  • 1300W Redundant Power Supply 80PLUS Platinum/Titanium level (92-96% Efficiency)

Specification

Model i5415 EPYC
Processor Support
  • Single Socket SP5 AMD EPYC 9005/9004 Series Processor
  • Single processor, cTDP up to 300W
  • At 25°C ambient, cTDP up to 400W
Core Logic System on Chip
Memory
  • 12 DIMM slots;
  • Max Memory (2DPC): Support upto 6400MT/s ECC DDR5 RDIMM
PCIe Expansion Slots
  • PCI-E:
    • 2 PCIe 5.0 x16 FHHL slot(s)
    • 2 PCIe 5.0 x16 AIOM slot(s)
  • M.2:
    • 1 x NVMe (PCIe Gen3 x4)
    • M-Key, 2280/22110
IPMI Feature
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Drive Bays 12 x 2.5" hot-swap hybrid Gen5 NVMe/SATA/SAS drive bays
Networking
  • 1 x 1Gb/s LAN port via Intel® I210-AT,
  • 1 Dedicated IPMI LAN
Cooling Feature Fans: 4 x 4cm heavy duty fans with optimal fan speed control
Onboard I/O
  • USB: 3 USB 3.0 port(s)
  • Video: 1 mDP port
  • TPM: TPM header
Security
  • Hardware:
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
  • Features:
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
Power Supply 1300W Redundant Power Supply 80PLUS Platinum/Titanium level (92-96% Efficiency)
Dimension / Form Factor 1U Rackmountable
