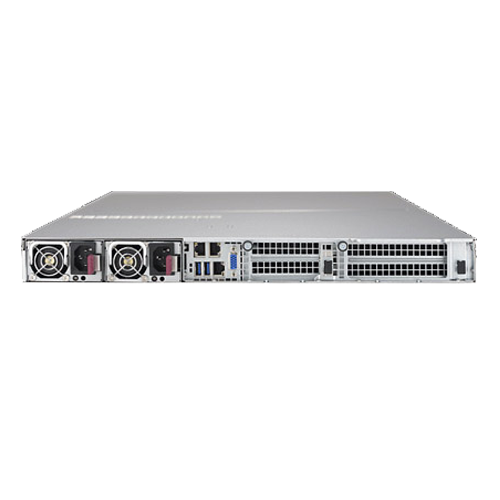

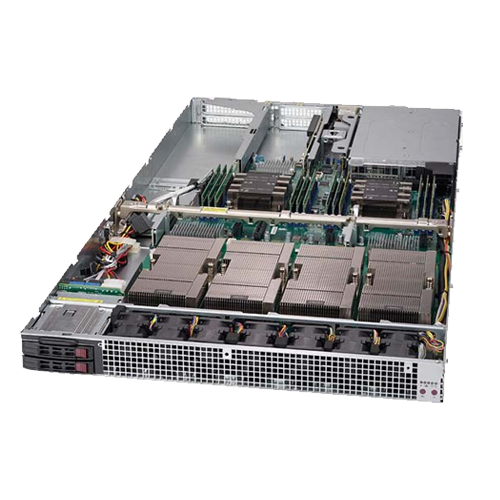

Invento i543 Purley Series

i543

Invento i543 Purley Series

Salient Features
  • Up to 4 NVIDIA® Tesla® V100 SXM2 GPUs
  • Up to 300 GB/s GPU-to-GPU NVIDIA® NVLINK™
  • Optimized for NVIDIA® GPUDirect RDMA
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
  • Up to 1.5TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 12 DIMM slots
  • 4 PCI-E 3.0 x16 slots
  • 2 Hot-swap 2.5" SAS/SATA drive bays, 2 Internal 2.5" drive bays
  • 2x 10GBase-T LAN ports via Intel X540
  • Support 1x M.2 2242/2260/2280, Support M.2 SATA and NVMe
  • 7 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control
  • 2000W Redundant Power Supplies Titanium Level (96%)

Specification

Model i543
Processor Support 2 X Intel® Xeon® Scalable Proc essors, 3 UPI up to 10.4GT/s
Core Logic Intel® C621 chipset
Memory
  • 12x DIMM slots;
  • Up to 1.5TB ECC 3DS LRDIMM, up to DDR4-2666MHz
PCIe Expansion Slot 4 PCI-E 3.0 x16 slots
RAID Options SATA3 (6Gbps) with RAID 0, 1, 5, 10
Drive Bays
  • Hot-Swap: 2 Hot-swap 2.5" SAS/SATA drive bays (Note: Can be upgraded to 2 U.2 NVMe drives by addition of optional NVMe kit)
  • Fixed: 2 Internal 2.5" drive bays
  • M.2: Support 1x M.2 2242/2260/2280, Support M.2 SATA and NVMe
Networking
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC
Onboard I/O
  • SATA: 4 SATA3 (6Gbps) ports
  • USB: 2 USB 3.0 ports (rear)
  • Video: 1 VGA port
  • Serial Header: 1 Fast UART 16550 header
Power Supply 2000W Redundant Power Supplies 80PLUS Titanium Level (96%)
Other Features Power Configurations
  • ACPI / APM Power Management
Dimension / Form Factor 1U Rackmount
