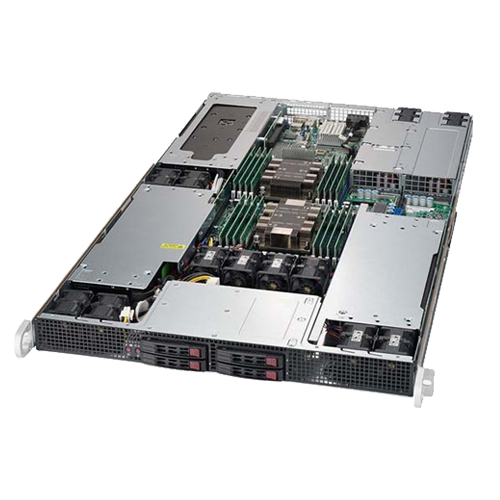

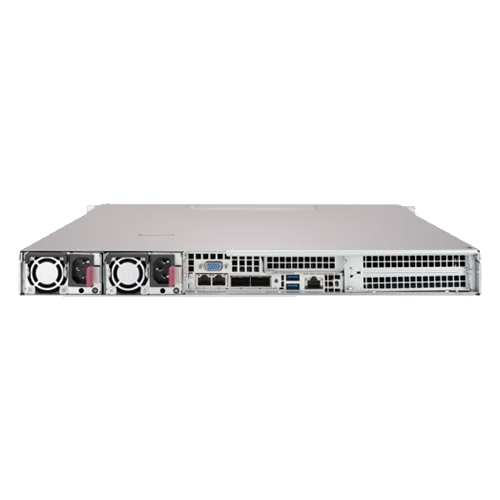

Invento i544 Purley Series

i544

Invento i544 Purley Series

Salient Features
  • Supports up to 3 GPUs Double Width in 1U
  • Support Passive GPUs
  • 2D/3D and CAD Applications
  • Oil and Gas Exploration
  • Cloud and Virtualization
  • Dual Socket P(LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • Up to 4TB ECC 3DS RDIMM/LRDIMM, up to DDR4-2933MHz; 16 DIMM slots
  • 4 PCI-E 3.0 x16 (FHFL) slots, 1 PCI-E 3.0 x8 (in x16, LP) slots
  • 1 SIOM for flexible Networking
  • 10 Counter rotating fans with optimal fan speed control
  • 2 Hot-swap 2.5" SAS/SATA drive bays, 2 Hot-swap 2.5" SAS/SATA/NVMe drive bays
  • 1600W Redundant Power Supplies Platinum Level (94%)

Specification

Model i544
Processor Support 2 X 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
Core Logic Intel® C621 chipset
Memory
  • 16 x DIMM slots;
  • Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM,
  • Supports Intel® Optane™ DCPMM
PCIe Expansion Slot
  • 4 PCI-E 3.0 x16,
  • 4 PCI-E 3.0 x16 (FHFL) slots and
  • 1 PCI-E 3.0 x8 (in x16, LP) slots
RAID Options SATA: SATA3 (6Gbps) with RAID 0, 1, 5, 10
Drive Bays 4 Hot-swap 2.5" drive bays
Networking 1 RJ45 Dedicated IPMI LAN port
Cooling Feature 10 Counter rotating fans with optimal fan speed control
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Onboard I/O
  • USB: 2 USB 3.0 ports (rear)
  • Video: 1 VGA port
  • Serial Header: 1 Fast UART 16550 header
Power Supply 1600W Redundant Power Supplies Platinum Level (94%) 80PLUS
Dimension / Form Factor 1U Rackmount
