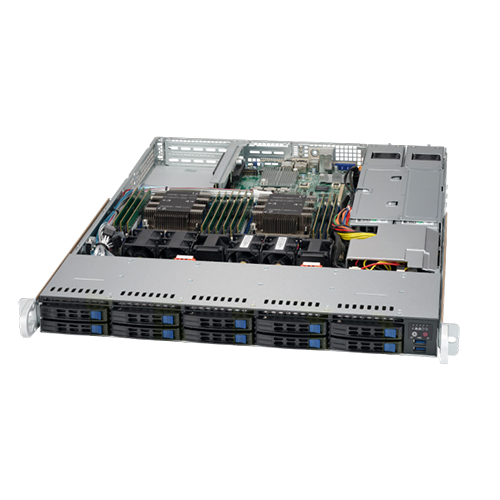

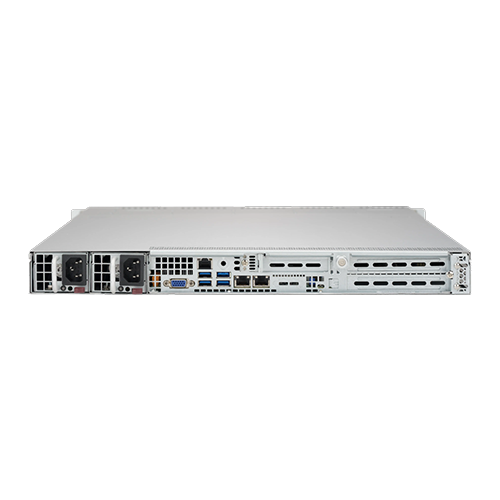

Invento i5510 Purley Series

Supports Intel® Xeon® 6300-series, Xeon® E-2400 series, and Pentium® Gold G7400/G7400T processors
4 DIMMs, ECC DDR5 slots
1 PCIe 5.0 slot
2 x 1GbE and 2 x10GbE Ports
10 x front hot-swap 2.5" SATA3 drive bays
4 Nos. counter-rotation PWM fan(s)
IPMI2.0, KVM with dedicated LAN
500W/800W Redundant Power Supply 80PLUS Platinum level (92-94% Efficiency)

Model	i5510
Processor Support	1 x Intel® Xeon® 6300-series, Xeon® E-2400 series, and Pentium® Gold G7400/G7400T processors Supports up to 95W TDP CPUs
Core Logic	Intel C262 Chipset
Memory	4 DIMM slots; Supports 4400MT/s (2SPC - 1DIMM) / 4000MT/s (2SPC - 2DIMM 1R) / 3600MT/s (2SPC - 2DIMM 2R)
PCIe Expansion Slot	Default: 1 PCIe 5.0 x16 slot M.2: 1 M-key (PCIe4.0 x4) Support 2280/2260/2242/2230 form factor
RAID Options	SATA: Intel® C262 (8 SATA 6Gb/s; RAID 0/1/5/10)
Drive Bays	Default: Total 10 bays (10 front hot-swap 2.5" SAS/SATA drive bays) M.2:* 1 M-key (PCIe4.0 x4) Support 2280/2260/2242/2230 form factor
Networking	2 RJ45 (10GbE) 2 RJ45 (1GbE) 1 x Dedicated IPMI Management Port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2600 BMC
Onboard I/O	USB: 2 USB 3.2 Gen1 Type-A ports Video Output: 1 VGA port Serial Port: 1 COM Port TPM: 1 TPM Header
Security	Hardware: Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant Features: Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
Cooling Feature	Fans: 4 x 4cm heavy duty fans with optimal fan speed control
Power Supply	500W/800W Redundant Power Supply 80PLUS Platinum level (92-94% Efficiency)
Dimension / Form Factor	1U Rackmount
