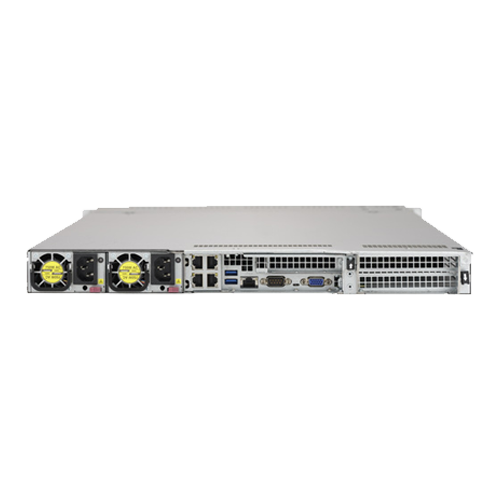

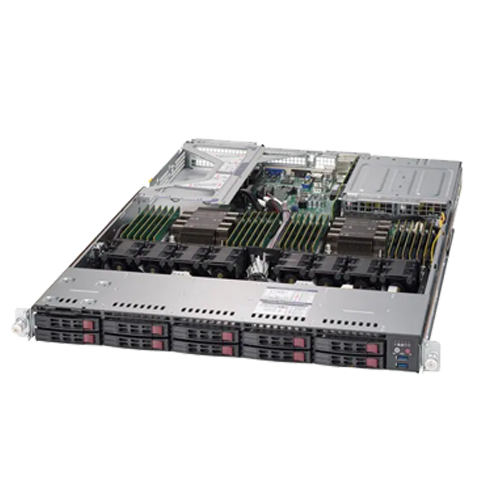

Invento i554e Purley Series (Rev. 1.0)

Click here to check upgraded version - Rev. 2.0

i554e

Invento i554e Purley Series (Rev. 1.0)

Salient Features
  • Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • Support up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, 24 DIMMs
  • 2 PCI-E 3.0 x16 slots (FH, 10.5" L), 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
  • 4 x 10GBase-T Ethernet ports
  • 10 Hot-swap 2.5" Drive Bays
  • 8 heavy duty fans with optimal fan speed control
  • 750W Redundant Power Supplies Platinum Level (94%+ Efficiency)

Specification

Model i554e
Processor Support 2 x Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake), Support CPU TDP 70-205W
Core Logic Intel® C621 chipset
Memory
  • 24x DIMM slots;
  • Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
PCIe Expansion Slot
  • 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
  • 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
RAID Options SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
Drive Bays
  • 10 Hot-swap 2.5" Drive Bays;
  • 10 SATA3 (2 hybrid ports - 2 NVMe opt.);
  • Optional M.2 NVMe and SATA3 ports
Networking
  • 4 x RJ45 10GBase-T Ethernet ports
  • 1 x RJ45 Dedicated IPMI LAN port
Graphics ASPEED AST2500 BMC
IPMI Features
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Cooling Feature
  • Fans: 8 heavy duty fans with optimal fan speed control
  • Air Shroud: 1 Air Shroud
Onboard I/O
  • SATA: 10 SATA3 (6Gbps) ports
  • SAS: 8 SAS3 ports support via optional Add-on Card
  • LAN: 4 RJ45 10GBase-T Ethernet ports, 1 RJ45 Dedicated IPMI LAN port
  • USB: 5 USB 3.0 ports (2 rear, 2 front, 1 Type A)
  • Video: 2 VGA ports (1 rear, 1 onboard)
  • Serial Port: 1 Serial header
Power Supply 750W Redundant Power Supplies Platinum Level (94%+ Efficiency)
Dimension / Form Factor 1U Rackmount
