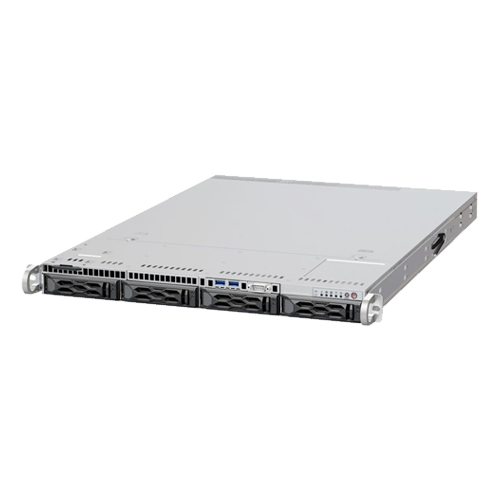

Invento i554e Purley Series (Rev. 2.0)

Invento i554e Purley Series

i554e

Invento i554e Purley Series (Rev. 2.0)

Salient Features
  • 3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
  • Intel® C621A chipset
  • Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; 8 DIMM Slots
  • 1 PCI-E 4.0 x16 Right Riser Slot, 1 PCI-E 4.0 x32 Left Riser Slot, 4 PCI-E 4.0 NVMe x4 Internal Port(s)
  • Dual LAN with 1GbE with Intel® I210
  • 4 x 3.5"/2.5"(tool-less) hot-swap SAS3/SATA drive bay
  • 7. 3 x 40 x 56mm counter-rotation PWM fan(s)
  • 500W/600W Redundant power supply Platinum level (92%)

Specification

Model i554e
Processor Support 1 X 3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Core Logic Intel® C621A chipset
Memory
  • 8x DIMM slots;
  • Up to 2TB Intel® Optane™ Persistent Memory 200 Series
  • Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz
PCIe Expansion Slot
  • PCI-E Slots:
    • 1 PCI-E 4.0 x16 Right Riser Slot,
    • 1 PCI-E 4.0 x32 Left Riser Slot
  • M.2:
    • M.2 Interface: PCI-E 3.0 x4; SATA
    • Form Factor: 2280, 22110
    • Key: M-Key
RAID Options SATA: Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Drive Bays 4 x 3.5"/2.5"(tool-less) hot-swap SAS3/SATA drive bay
Networking
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 dedicated IPMI LAN
IPMI Features
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2600 BMC
Cooling Feature 3 x 40 x 56mm counter-rotation PWM fan(s)
Onboard I/O
  • USB: 4 USB 2.0 port(s) (2 rear; 2 via header), 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
  • Video Output: 1 VGA port(s)
  • Serial Port: 2 COM Port(s) (1 header; 1 rear)
  • DOM: 2 SATA DOM (Disk on Module) power connector support
  • TPM: 1 TPM Header
Operating Environment
  • Operating Temperature Range: 0°C - 50°C (32°F - 122°F)
  • Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F)
  • Operating Relative Humidity Range: 8% - 90% (non-condensing)
  • Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)
Power Supply 500W/600W Redundant power supply Platinum level (92% Efficiency)
Dimension / Form Factor 1U Rackmount
