Invento i6000 Series

i6000

Invento i6000 Series

Salient Features
  • Dual Socket E (LGA-4677) 4th/5th Gen Intel® Xeon® Scalable processors
  • 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600;
  • Optional PCIe slot configurations up to 8 PCIe 5.0 x 8 or 4 PCIe 5.0 x 16 slots with support for double-width GPU/Accelerator cards;
  • Flexible networking options with up to 1 AIOM networking slot (OCP NIC 3.0 compatible);
  • 12 x 3.5"/2.5" (Optional upgradable to 24 x 2.5") hot-swap NVMe/SATA/SAS drive bays;
  • 2 x internal M.2 NVMe drive slots; Optional RAID support via storage add-on card;
  • 4 heavy duty hot-swap fans with optimal fan speed control;
  • 800/1300/1600W redundant Platinium level power supplies(92% - 96% Efficiency)

Specification

Model i6000
Processor Support
  • 4th/5th Gen Intel® Xeon® Scalable processors
  • Dual Socket LGA-4677 (Socket E) supported
  • 4 UPI Intel Xeon CPU Max Series with high bandwidth memory (HBM)
    (Supports up to 350W TDP CPUs (Aircooled)
Core Logic Intel® C741 Chipset
Memory
  • 32 DIMM slots
  • Up to 8TB ECC RDIMM, DDR5-5600MHz
Expansion Slot
  • Up to 10 x standard PCIe 5.0 slots and 1 x OCP 3.0 slot
  • Up to 2 x DW GPU or 4 x SW GPU
Drive Bays

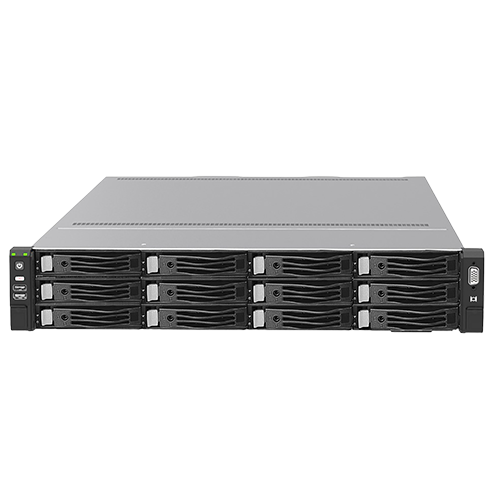

  • 12 x 3.5" hot-swap NVMe/SATA/SAS drive bays
    Optional 4 x 2.5 inch Drives
    Internal : 2 x M.2 SSD drive slots
OR

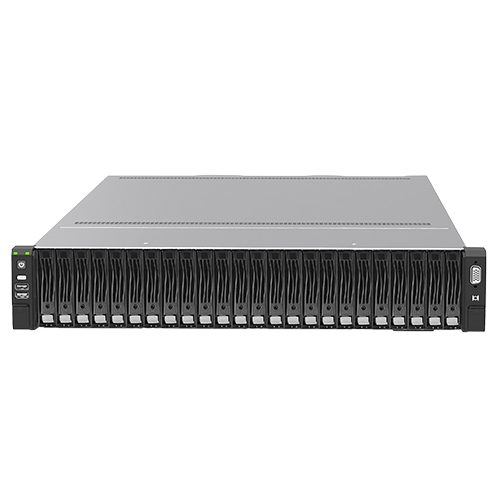

  • 24 x 2.5" hot-swap NVMe/SATA/SAS drive bays
    Optional 4 x 2.5 inch Drives
    Internal : 2 x M.2 SSD drive slots
Button & LEDs
  • 1 x PWR BTN with LED
  • 1 x Front UID BTN with LED + 1 x Rear UID LED
Cooling Features 4 x 8cm heavy duty fan(s)
System BIOS BIOS Type: AMI 256MB SPI Flash
Management KVM with dedicated LAN; IPMI 2.0; Redfish API
PC Health Monitoring
  • CPU: Monitors for CPU Cores, Chipset Voltages, Memory
  • FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
  • Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
Operating Environment
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Onboard I/O
  • LAN: 2 x 1G Ethernet Ports, 1 RJ45 Dedicated BMC LAN port
  • USB: 2 USB 3.0 port(s) (2 rear), 2 USB 3.0 port(s) (2 front)
  • Video: 1 VGA port(rear), 1 VGA port(front)
  • TPM: TPM Header
Power Supply
  • 800W/ 1300W/ 1600W/ 2000W
  • 1+1 Redundant CRPS
Dimension / Form Factor
  • 2U Rackmount
  • Enclosure: 86mm (H) x 447mm (W) x 815mm (D)
