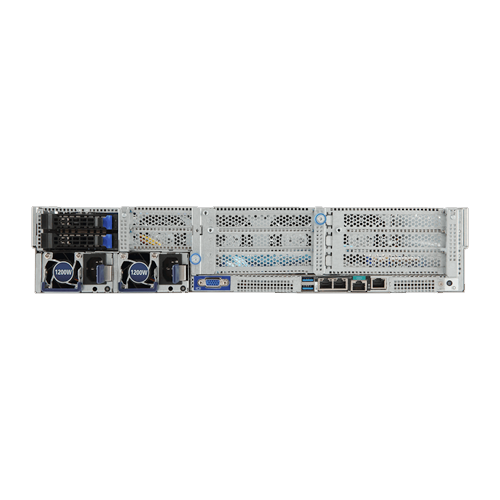

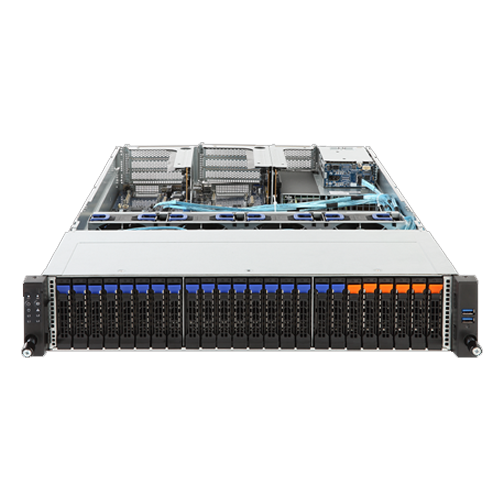

Invento i6008 EPYC Series

i6008 EPYC

Invento i6008 EPYC Series

Salient Features
  • Dual AMD EPYC™ 7002 and 7001 series processor family; Up to 64-core, 128 threads per processor TDP up to 225W, cTDP up to 240W
  • Support RDIMM/LRDIMM DDR4, 32 x DIMMs
  • Up to 6 x 2.5" U.2, 20 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
  • 7 x PCIe Gen3 expansion slots
  • 2 x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
  • Aspeed® AST2500 remote management controller
  • 4 x 80x80x38mm System Cooling fans
  • 1200W (1+1) Redundant Power Supply Units 80 PLUS Platinum

Specification

Model i6008 EPYC
Processor Support 2 X AMD EPYC™ 7002 and 700 1 series processor family
Core Logic System on Chip (SoC)
Memory
  • 32 x DIMM slots;
  • Support upto 3200MHz Memory
PCIe Expansion Slot
  • Riser Card:
    • 1 x PCIe x16 slot (Gen3 x16 or x8), Full height half-length
    • 1 x PCIe x8 slots (Gen3 x0 or x8), Full height half-length
    • 1 x PCIe x8 slots (Gen3 x8), Full height half-length
  • Riser Card:
    • 1 x PCIe x16 slot (Gen3 x16 or x8), Full height half-length
    • 1 x PCIe x8 slots (Gen3 x0 or x8), Full height half-length
    • 1 x PCIe x8 slots (Gen3 x8), Full height half-length, Occupied by CNV3122, 2 x U.2 ports
  • Riser Card:
    • 1 x PCIe x8 slots (Gen3 x0 or x8), Low profile half-length
    • 1 x PCIe x16 slot (Gen3 x16 or x8), Low profile half-length
Drive Bays
  • 6 x 2.5" U.2 and
  • 20 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
Networking
  • 2 x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
  • 1 x Dedicated GbE for IPMI
Cooling Features 4 x 80x80x38mm System Cooling fans
Onboard I/O
  • USB: 2 x USB 3.0 (at Front), 2 x USB 3.0 (at Rear)
  • 1 VGA Port
  • 1 x COM (RJ45 type)
Power Supply 1200W (1+1) Redundant Power Supply Units 80 PLUS Platinum
Dimension / Form Factor 2U Rackmount
