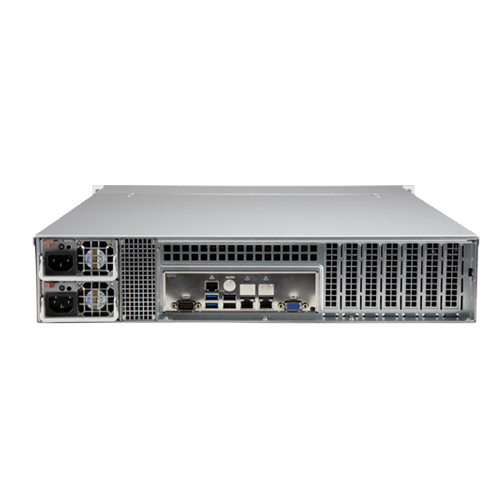

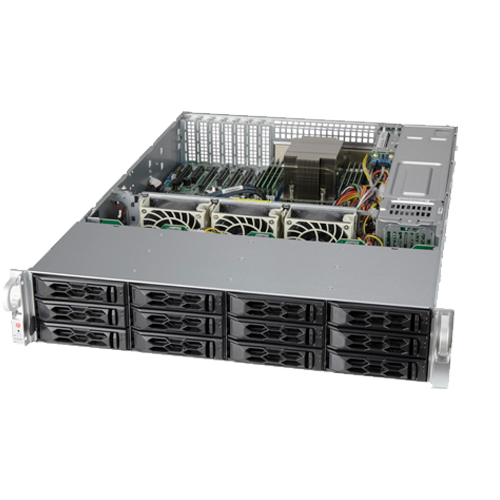

Invento i6012 EPYC Series

i6012 EPYC

Invento i6012 EPYC Series

Salient Features
  • Dual AMD EPYC™ 7003/7002 Series Processors
  • Up to 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
  • 3 PCI-E 4.0 x16 slots, 3 PCI-E 4.0 x8 slots
  • Dual 10GBase-T LAN Ports
  • 3 Heavy-duty PWM Fans
  • 12 hot-swap 3.5"/2.5" Drive Bays
  • RoHS Compliant
  • 920W/800W Redundant Power Supplies Platinum Level (92-94% Efficiency)

Specification

Model i6012 EPYC
Processor Support 2 X Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) Socket SP3, Up to 64 Cores
Core Logic System on Chip
Memory
  • 16 x DIMM slots;
  • Up to 4TB Registered ECC DDR4 3200MHz SDRAM
PCIe Expansion Slot
  • PCI-Express:
    • 3 PCI-E 4.0 x16 slots
    • 3 PCI-E 4.0 x8 slots
  • M.2:
    • Interface: 1 PCI-E 4.0 x4
    • Form Factor: 2280, 22110
    • Key: M-key
Drive Bays
  • 12 hot-swap 3.5"/2.5" Drive Bays
  • Optional 2 Nos. 2.5" Bays at Rear
Network Controller
  • Dual 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
IPMI
  • Support for Intelligent Platform Management Interface v. 2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2600 BMC
Cooling Features 3 Heavy-duty PWM Fans with optimal fan speed control
Onboard I/O
  • USB: 2 USB 2.0 ports (rear), 4 USB 3.0 ports (2 rear, 2 headers)
  • VGA: 1 VGA port
  • Others:
    • 1 COM port (rear)
    • 2 SATA DOM power connectors
    • 4 PCI-E 4.0 NVMe x4 internal ports
    • TPM 2.0 header
Power Supply 920W/800W (1+1) Redundant Power Supplies Platinnum Level (92-94% Efficiency) 80PLUS
Dimension / Form Factor 2U Rackmount
