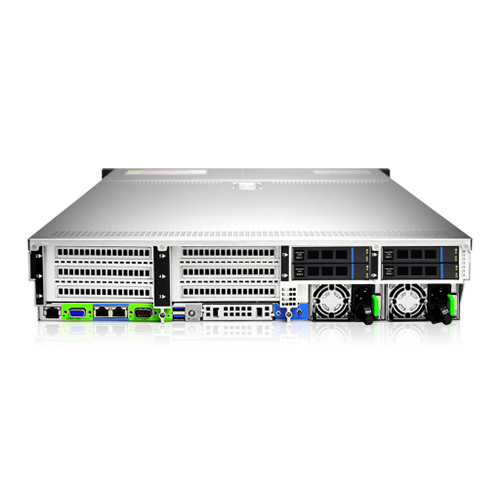

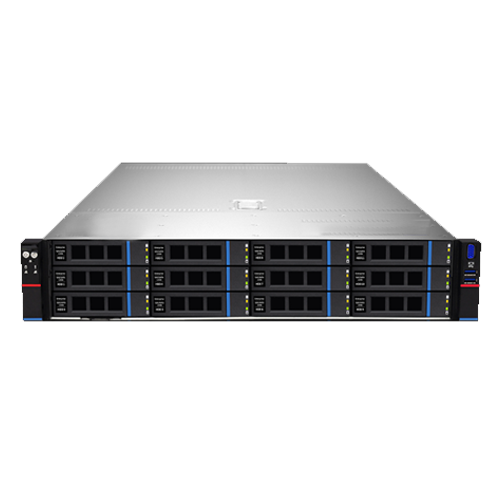

Invento i6013G Series

Single or Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
Supports DDR4 ECC RDIMM / LRDIMM server memory, memory frequency support 1866/2133/2400/2666/2933MHz
Up to 7 PCIe Expansion Slot
Onboard 2 x 1GbE or 2 x 10GbE (RJ45)
Supports up to 12 x 3.5″/2.5″ SAS/SATA Hard drives
4 Nos. fans with speed and cooling zone control
ASPEED AST2500 onboard Graphics
Internal storage: 2 PCIe 3.0 x4 M.2 slots, 2 Mini SSD slots (SATA DOM)
1000W/1200W (1+1) Redundant Hot-Swappable Power Supply Platinum/Titanium level

Model	i6013G
Processor Support	Single or Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
Core Logic	Intel® C621/C622 Chipset
Memory	24 x DIMM slots Support DDR4 ECC RDIMM / LRDIMM server memory, memory frequency support 1866/2133/2400/2666/2933MHz Supports Intel® Optane™ DCPMM
Expansion Slot	PCI-E Slots: Up to 7 Nos. PCIe expansion Slots
RAID Options	SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
Drive Bays	Supports up to 12 x 3.5″/2.5″ SAS/SATA3.0 hard drives
Network Controller	2 x 1GbE or 2 x 10GbE (RJ45) Ports 1 RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
Cooling Feature	4 Nos. fans with speed and cooling zone control
Environmental Spec.	Operating Temperature: 10ºC - 35ºC (without direct sunlight); extended operating temperature: 5ºC - 40ºC (limited configurations are met); transport storage temperature: -40ºC - 70ºC Humidity: Operating humidity: 30% - 80% (non-condensing); Storage humidity: 5% - 95% (non-condensing)
Onboard I/O	USB: 2 USB 3.0 ports (Front), 2 USB 3.0 ports (Rear) Video: 2 VGA Ports (Front & Rear) Serial Port / Header:1 COM Port
Power Supply	1000W/1200W (1+1) Redundant Hot-Swappable Power Supply Platinum/Titanium level
Dimension / Form Factor	2U Rackmount
