Invento i6016 Series

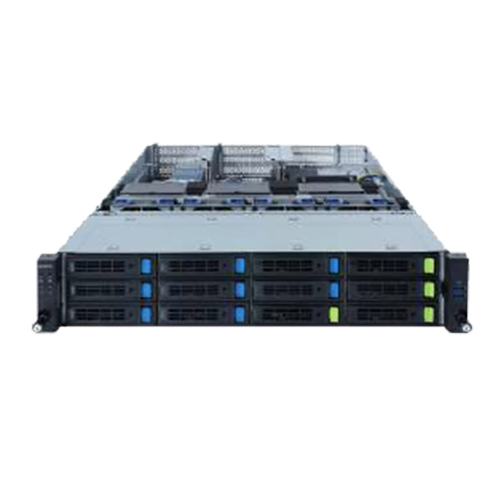

Invento i6016 EPYC Series

i6016

Invento i6016 Series

Salient Features
  • Dual AMD EPYC™ 7002 series processor family, Up to 64-core, 128 threads per processor cTDP up to 240W
  • Support upto 32 DIMMs slots
  • Supports up to 3 x double slot GPU cards
  • 4 x PCIe Gen4 x16 expansion slots
  • Integrated in Aspeed® AST2500
  • 8 x 3.5" SATA/SAS hot-swappable HDD/SSD bays & 4 x 3.5" SATA/SAS/Gen4 NVMe hot-swappable HDD/SSD bays
  • 2 x 1GbE LAN ports (Intel® I350-AM2)
  • 4 x 80x80x38mm (16,300rpm)
  • 2000W (240V) 80 PLUS Platinum redundant power supply

Specification

Model i6016
Processor Support 2 X AMD EPYC 7002 series processor family, Up to 64-core, 128 threads per processor cTDP up to 240W
Core Logic System on Chip (SoC)
Memory
  • 32 x DIMM slots
  • DDR4 memory supported only
  • 8-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • LRDIMM modules up to 128GB supported
  • Memory speed: Up to 3200*/ 2933 MHz
PCIe Expansion Slot 4 x PCIe Gen4 x16 expansion slots
Drive Bays
  • 8 x 3.5" SATA/SAS hot-swappable HDD/SSD bays &
  • 4 x 3.5" SATA/SAS/Gen4 NVMe hot-swappable HDD/SSD bays
Graphics
  • Aspeed® AST2500 management controller
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200@60Hz 32bpp
Cooling Features 4 x 80x80x38mm (16,300rpm)
Onboard I/O
  • USB: 4 x USB 3.0
  • VGA: 1 x VGA Port
  • Networking: 2 x 1GbE LAN ports (1 x Intel® I350-AM2), 1 x Dedicated Management port
Operating Properties
  • Operating temperature: 10°C to 35°C
  • Operating humidity: 8-80% (non-condensing)
  • Non-operating temperature: -40°C to 60°C
  • Non-operating humidity: 20%-95% (non-condensing)
Power Supply 2000W (1 +1) 80PLUS Platinum Level Redundant Power Supply
Dimension / Form Factor 2U Rackmount
