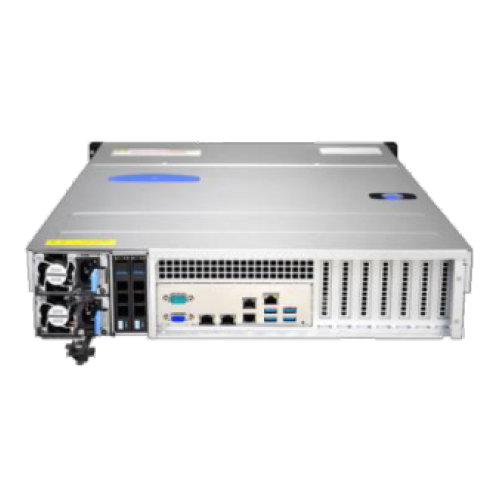

Invento i6023 Series

2nd Gen Intel Xeon Scalable Processor Max up to 205W
Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR, 12 DIMMs
3 PCIe Gen.3 x8 slots, 4 PCIe Gen.3 x16 slots
2 x GbE ports (via Intel® I350-AM2)
8 x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive bays
Intel® C621 chipset
600W / 650W / 800W (1+1) Redundant Power Supply (94% Efficiency) 80PLUS Platinum Level

Model	i6023
Processor Support	2 x 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
Core Logic	Intel® C621 chipset
Memory	12 x DIMM slots; Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS
PCIe Expansion Slot	PCI-E Slots 4 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 M.2 (1) M.2 connector (2242) by PCI-E interface / (1) M.2 connector (2242/2260/2280) by PCI-E interface
RAID Options	SATA: Intel® C621 controller for 8 SATA (6 Gbps) ports; RAID 0,1,5,10 (Intel RST)
Drive Bays	8 x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bays Rear: 2 x 2.5" SATA3.0 SSD(optional)
Network Controllers	2 x GbE ports(1 port shared with IPMI/ -M SKU only)
IPMI	IPMI 2.0 compliant baseboard management controller (BMC), Supports storage over IP and remote platform-flash, USB 2.0 virtual hub 24-bit high quality video compression, 10/100/1000 Mb/s MAC interface
Graphics	ASPEED AST2500 BMC
Cooling Features	3 x 80mm heavy duty fan(s) with PWM fan(s) speed control 1 x 80mm FAN (optional)
Onboard I/O	USB: 3 x USB2.0 ports (2 via cable, 1 Type-A), 6 x USB3.0 ports (4 at rear, 2 via cable) Video Output: D-Sub 15-pin VGA port Serial Port / Header: 1 Port (rear) TPM: 1 TPM Header
Regulatory	Power Supply Safety / EMC: BSMI CCC CE/EMC FCC
Power Supply	600W / 650W / 800W (1+1) Redundant Power Supply (94% Efficiency) 80PLUS Platinum Level
Dimension / Form Factor	2U Rackmount
