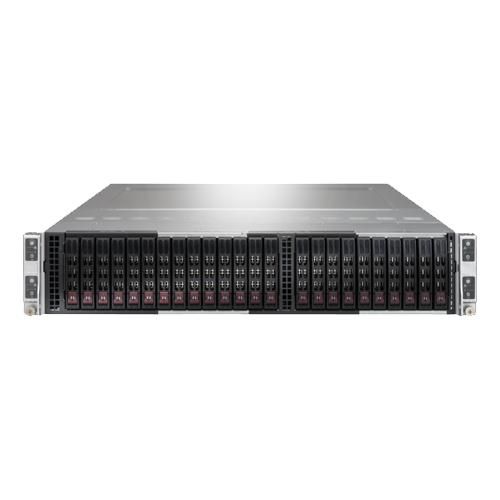

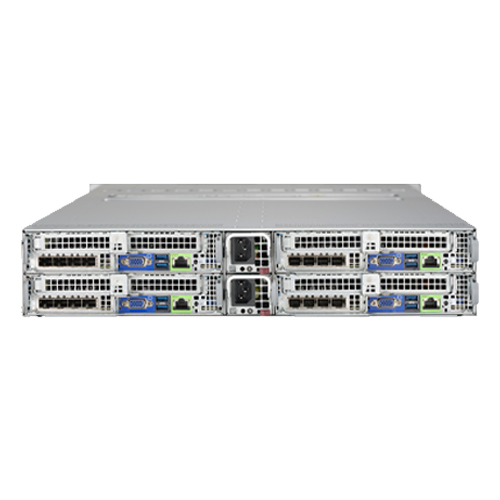

Invento i603 EPYC Series

i603 EPYC

Invento i603 EPYC Series

Salient Features

Four hot-pluggable systems (nodes) in a 2U form factor.
Each node supports the following:

  • Dual AMD EPYC™ 7002 Series Processors
  • Up to 4TB ECC 3DS LRDIMM,up to DDR4-3200MHz; 16 DIMM slots
  • 2 PCI-E 4.0 x16 (LP) slot; 1 SIOM card support (flexible networking)
  • Integrated IPMI 2.0 + KVM with dedicated LAN
  • 4 Heavy duty 8cm PWM fans
  • 6 Hot-swap 2.5" SATA3 drive bays
  • 2200W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)

Specification

Model i603 EPYC
Processor Support 2 X AMD EPYC™ 7002 Series Processors
Core Logic System on Chip
Memory
  • 16 x DIMM slots;
  • Up to 4TB ECC 3DS LRDIMM, up to DDR4-3200MHz
PCIe Expansion Slot
  • PCI-Express:
    • 2 PCI-E 4.0 (x16) Low-profile slots and
    • 1 SIOM card support (must bundle with network card)
  • M.2:
    • Interface: 1 SATA/PCI-E 3.0 x4
    • Form Factor: 2280, 22110
    • Key: M-key
Drive Bays 6 Hot-swap 2.5" SATA3 drive bays
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Cooling Features 4 Heavy duty 8cm PWM fans
Onboard I/O
  • LAN: Provided via SIOM (optional), 1 RJ45 Dedicated IPMI LAN port
  • USB: 2 USB 3.0 ports (rear)
  • Video: 1 VGA port
  • DOM: 1 DOM (Disk on Module) port
  • Others: 1 COM port (header), 1 TPM 2.0 header
Power Supply 2200W Redundant Power Supplies Titanium Level (96% Efficiency)
Dimension / Form Factor 2U Rackmount
