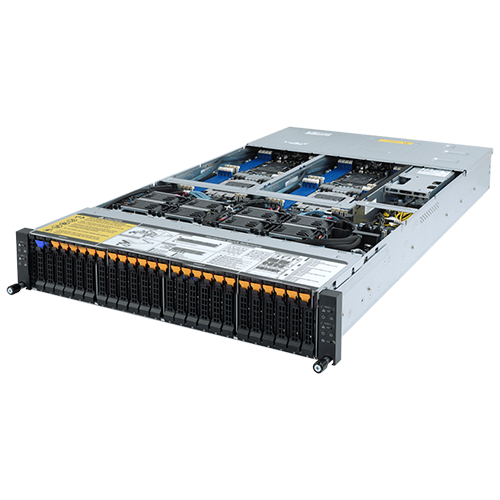

Invento i6033 EPYC Series

i6033 EPYC

Invento i6033 EPYC Series

Salient Features

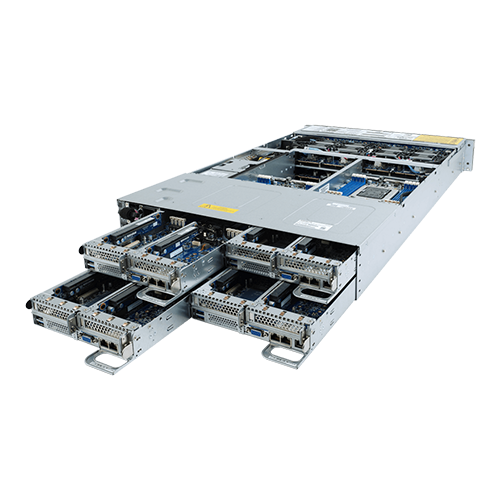

Four hot-pluggable systems (nodes) in a 2U form factor.
Each node supports the following:

  • Dual AMD EPYC 7003 Series Processors per Node
  • Up to 16 DIMM slots per Node
  • 2 PCI-E 4.0 x16 (LP) slot
  • Integrated IPMI 2.0 + KVM with dedicated LAN per Node
  • 6 Hot-swap 2.5" SATA3 drive bays per Node
  • 2200W Redundant Power Supplies Platinum Level (92%-94%) (Full redundancy based on configuration and application load)

Specification

Model i6033 EPYC
Processor Support
  • 2 X AMD EPYC™ 7003 Series Processors (i.e. Total 8 CPu sockets in 4 Nodes)
  • 7nm technology
  • Up to 64-core, 128 threads per processor
  • TDP up to 200W
Core Logic System on Chip
Memory
  • 16 x DIMM slots (i.e. Total 64 DIMM slots in 4 Nodes);
  • Supports up to DDR4-3200MHz
PCIe Expansion Slot
  • PCI-Express:
    • 2 PCI-E 4.0 (x16) Low-profile slots
  • M.2:
    • Interface: 2 x M.2 slot
    • Form Factor: 2242/2260/2280/22110
    • Key: M-key
Drive Bays 6 Hot-swap 2.5" SATA3 drive bays per Node (i.e. Total 24 Bays in 4 Nodes)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Cooling Features 8 Nos. x 80x80x38mm (16,300rpm) Heavy duty PWM fans
Onboard I/O
  • LAN: 2 x 1GbE LAN ports (per Node)
  • 1 RJ45 Dedicated IPMI LAN port (per Node)
  • USB: 2 USB 3.0 ports (rear) (per Node)
  • Video: 1 VGA port (per Node)
  • Others: 1 TPM 2.0 header (per Node)
Power Supply 2200W Redundant Power Supplies Platinum Level (92%-94%) (Full redundancy based on configuration and application load)
Dimension / Form Factor 2U Rackmount
