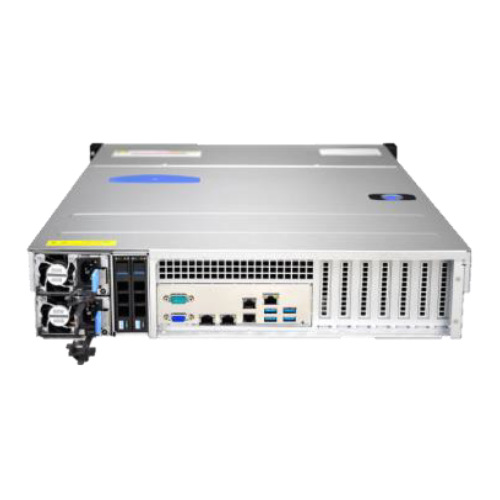

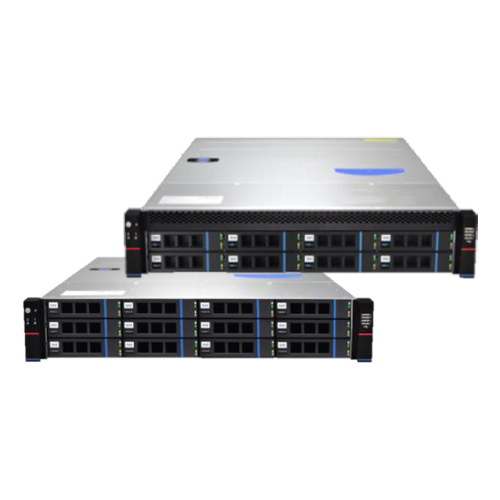

Invento i6071 Series

i6071

Invento i6071 Series

Salient Features
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
  • Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz, in 12 DIMM slots
  • 1 PCI-E 3.0 x32 Left Riser Slot, 1 PCI-E 3.0 x16 Right Riser Slot, 1 PCI-E 3.0 x16 for Add-On-Module (AOM)
  • 6 USB 3.0 ports (4 rear + 2 via headers)
  • Dual LAN with 10Gbase-T from C622
  • ASPEED AST2500 BMC
  • 8 x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive bays
  • 600W/650W Redundant Power Supply 80PLUS Platinum (94% Efficiency)

Specification

Model i6071
Processor Support 2 x 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
Core Logic Intel® C622 chipset
Memory
  • 12 x DIMM slots;
  • Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz
  • Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
Expansion Slot
  • PCI-E Slots:
    • 1 PCI-E 3.0 x32 Left Riser Slot,
    • 1 PCI-E 3.0 x16 Right Riser Slot,
      (1 PCI-E 3.0 x16 (FHHL) slots, 2 PCI-E 3.0 x8 (FHHL) slots, 2 PCI-E 3.0 x8 (LP) slots will get through from above Riser slots)
    • 1 PCI-E 3.0 x16 for Add-On-Module (AOM)
  • M.2:
    • M.2 Interface: PCI-E 3.0 x 4
    • Form Factor: 2242, 2260, 2280, 22110
    • Key: M-Key
RAID Options SATA: Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Drive Bays
  • 8 x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay
  • Optional 2 x 3.5" fixed drive bay
  • Optional 2 x 2.5" hot-swap SAS3/SATA drive bay
Network Controller
  • Dual LAN with 10Gbase-T from C622
  • 1 x RJ45 Dedicated IPMI LAN port
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC
Onboard I/O
  • SATA: 14 x SATA3 (6Gbps) ports
  • USB: 6 USB 2.0 ports (4 rear + 2 via headers)
  • Video Output: 1 VGA port
  • TPM: 1 TPM Header
Power Supply 600W/650W Redundant Power Supply 80PLUS Platinum (94% Efficiency)
Dimension / Form Factor 2U Rackmount
