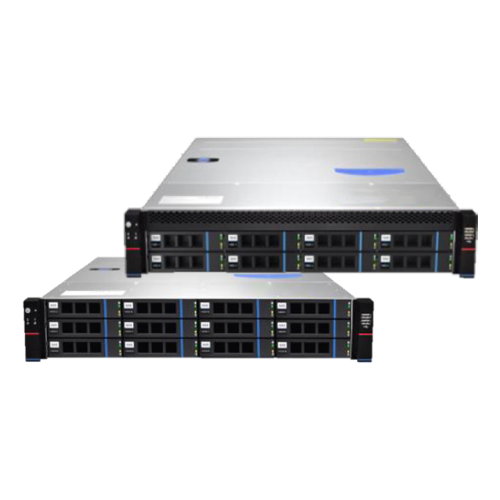

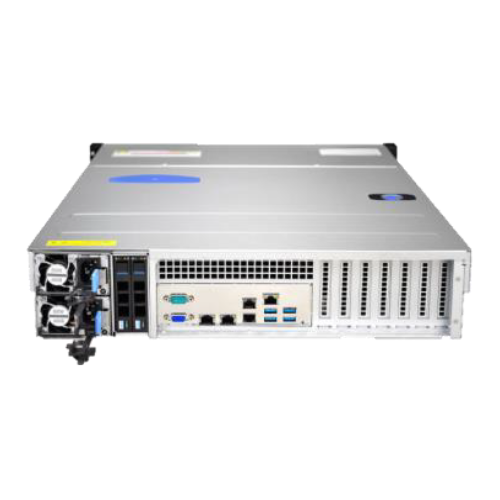

Invento i6081 Series

i6081

Invento i6081 Series

Salient Features
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
  • Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz Or 2TB Intel© PMem, DDR4-2666MHz, in 16 DIMM slots
  • 4 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8; 2 PCI-E 3.0 NVMe x4 Internal Port(s)
  • 4 USB 2.0 ports (2 rear + 2 via headers), 5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)
  • Dual LAN with 1G/10GBase-T
  • ASPEED AST2500 BMC
  • 8 x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive bay; Optional 2 x 2.5" Hot swap drive bay
  • 600W / 650W/ 800W Redundant Power Supply (94% Efficiency) 80PLUS Platinum Level

Specification

Model i6081
Processor Support 2 x 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
Core Logic Intel® C621/C622 chipset
Memory
  • 16 x DIMM slots;
  • Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz Or 2TB Intel© PMem, DDR4-2666MHz
  • Up to 2TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only)
Expansion Slot
  • PCI-E Slots:
    • 4 PCI-E 3.0 x 16,
    • 2 PCI-E 3.0 x8
  • M.2:
    • M.2 Interface: PCI-E 3.0 x 4
    • Form Factor: 2260, 2280, 22110
    • Key: M-Key
RAID Options SATA: Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Drive Bays
  • 8 x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bays
  • Optional 2 x 2.5" hot-swap SAS3/SATA drive bays
Network Controller
  • Dual LAN with 1G/10GBase-T
  • 1 x RJ45 Dedicated IPMI LAN port
IPMI ASPEED AST2500
Graphics ASPEED AST2400 BMC
Cooling Features Support upto 4 Nos. Hot swap and Redundant Cooling PWM Fans (3 Nos. Default and Optional 1 No. Fan)
Onboard I/O
  • SATA: 10 x SATA3 (6Gbps) ports
  • USB: 4 USB 2.0 ports (2 rear + 2 via headers), 5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)
  • Video Output: 1 VGA port
  • Serial Port / Header: 2 COM Ports (1 rear, 1 header)
  • TPM: 1 TPM Header
Regulatory Power Supply Safety / EMC:
  • BSMI
  • CCC
  • CE/EMC
  • FCC
Power Supply 600W / 650W / 800W Redundant Power Supply (94% Efficiency) 80PLUS Platinum Level
Dimension / Form Factor 2U Rackmount
