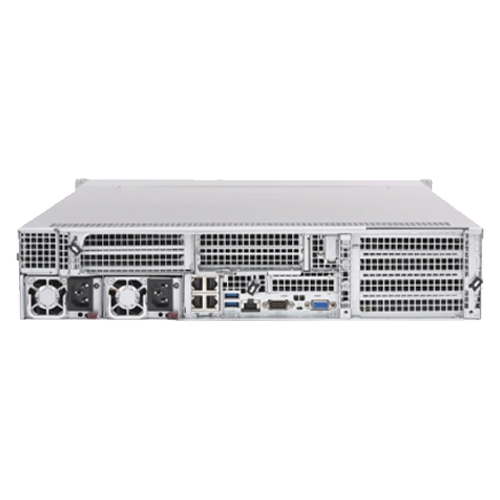

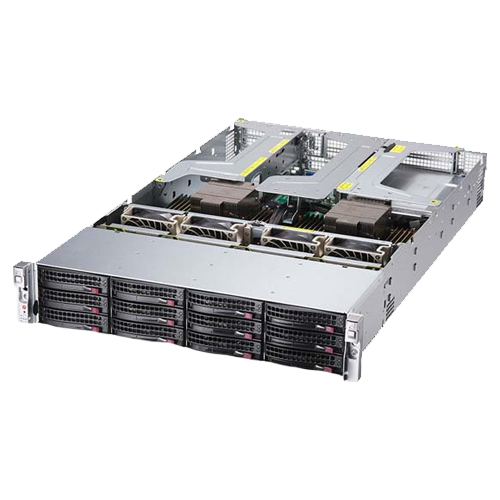

Invento i610 EPYC Series

i610 EPYC

Invento i610 EPYC Series

Salient Features
  • Dual AMD EPYC™ 7001/7002* Series Processors (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
  • Up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs (7001 Processors); 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs (Board revision 2.x required + 7002 Processors)
  • 1 PCI-E 3.0 x16 slot (FH, 10.5" L), 5 PCI-E 3.0 x8 slots (FH, 9.5" L), 1 PCI-E 3.0 x8 slot (LP), 1 PCI-E 3.0 x8 (internal proprietary LP slot)
  • Quad Gigabit LAN ports via Intel i350AM4
  • 12 hot-swap 3.5" Drive Bays
  • 1600W Redundant Power Supplies Titanium Level (96%+) (Full redundancy based on configuration and application load)

Specification

Model i610 EPYC
Processor Support 2 x AMD EPYC™ 7001/7002* Series Processors (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
Core Logic System on Chip (SoC)
Memory
  • 32 DIMM slots;
  • Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors)
  • Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors)
PCIe Expansion Slot
  • 1 PCI-E 3.0 x16 slot (FH, 10.5" L)
  • 5 PCI-E 3.0 x8 slots (FH, 9.5" L)
  • 1 PCI-E 3.0 x8 slot (LP)
  • 1 PCI-E 3.0 x8 (internal proprietary LP slot)
HDD Backplane Supports 12 SATA3 or 8 SATA3 + 4 NVMe or 12 SAS3 HDD
Drive Bays
  • 12 Hot-Swap 3.5" Drive Bays:
    • 12 SATA3 by default
    • Optional Drive Support: 8 SAS3 + 4 SAS3/NVMe
  • 2 Rear Hot-Swap 2.5" drive bays
Networking
  • Quad Gigabit LAN ports via Intel i350AM4
  • 1 RJ45 Dedicated IPMI LAN port
Onboard I/O
  • SATA: 12 SATA3 (6 Gbps) ports
  • USB: 3 USB 3.0 ports (2 rear + 1 Type A)
  • VGA: 1 VGA port
  • SAS: 12 SAS3 ports support via optional Add-on Card
  • NVMe: 4 NVMe support with optional cables
  • Others:
    • 1 COM port (rear)
    • 2 SATA DOM power connector
    • TPM 1.2 header
Power Supply 1600W Redundant Power Supplies Titanium Level 80PLUS (96%+ Efficiency)
Dimension / Form Factor 2U Rackmount
