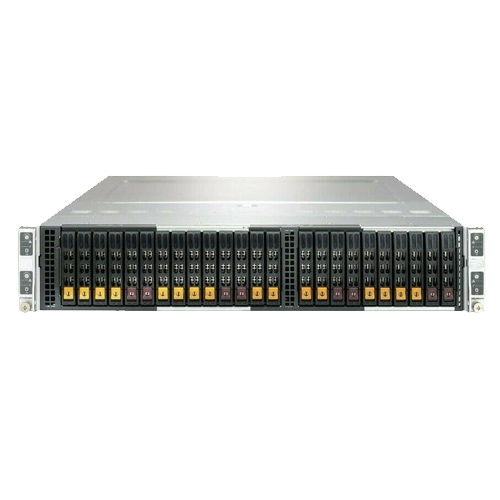

Invento i6106 Series

i6106

Invento i6106 Series

Salient Features
  • Dual Socket P (LGA 3647) support 2nd Gen. Intel Xeon Scalable processors (Cascade Lake/Skylake)
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane™ DCPMM; 24 DIMM slots
  • 2 PCI-E 3.0 x16 (LP) slot; 1 SIOM card support (flexible networking)
  • 6 SAS3 or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays; 2 M.2 SATA3 or NVMe support
  • 4 Heavy duty PWM fans
  • 2200W Redundant Power Supplies Titanium Level (96%)

Specification

Model i6106
Processor Support
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
  • Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Core Logic Intel® C621 chipset
Memory
  • 24 x DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM,
  • Supports Intel Optane™ DCPMM
PCIe Expansion Slot
  • 2 PCI-E 3.0 (x16) Low-profile slots
  • 1 SIOM card support (must bundle with network card)
RAID Options SAS: SAS3 (12Gbps) via Broadcom 3008
Drive Bays
  • Hot Swap: 6 Hot-swap 2.5" SAS3 drive bays or 4 NVMe + 2 SAS3 Hot-swap 2.5"
  • M.2: 2 M.2 NVMe or SATA (2240/2260/2280) via optional Add on card
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Cooling Feature 4 Heavy duty PWM fans with air shroud

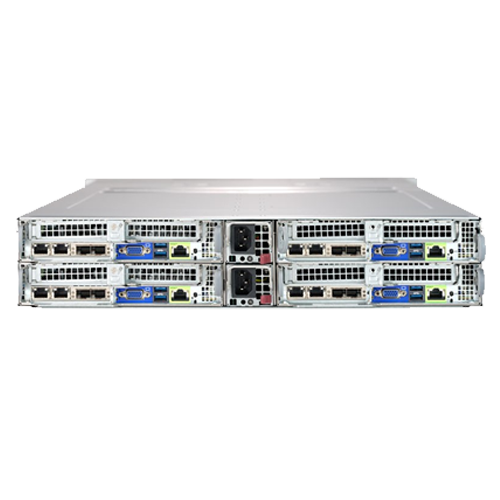

Onboard I/O
  • LAN: 1 RJ45 Dedicated IPMI LAN port
  • USB: 2 USB 3.0 ports (rear)
  • Video: 1 VGA port
  • DOM: 1 DOM (Disk on Module) port
Power Supply 2200W Redundant Power Supplies Titanium Level (96%) 80PLUS
Dimension / Form Factor 2U Rackmount
