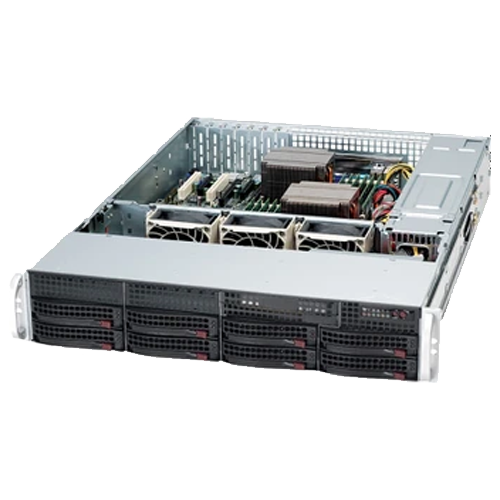

Invento i6109 EPYC Series

Dual AMD EPYC™ 7001/7002* Series Processors (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
Up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs; 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required)
2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8
Up to 2 USB 3.0 ports, Up to 4 USB 2.0 ports
Dual Gigabit Ethernet LAN Ports
ASPEED AST2500 BMC
8 x 3.5" hot-swap SAS3/SATA drive bay, 2 x 3.5" fixed drive bay
800W Redundant Power Supply (96% Efficiency) 80PLUS Titanium Level

Model	i6109 EPYC
Processor Support	2 x AMD EPYC™ 7001/7002* Series Processors (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
Core Logic	System on Chip
Memory	16 x DIMM slots; Up to 2TB Registered ECC DDR4 2666MHz SDRAM Up to 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required)
PCIe Expansion Slot	PCI-Express: 3 PCI-E 3.0 x8 2 PCI-E 3.0 x16 M.2: Interface: 1 SATA/PCI-E 3.0 x2 (Platform with EPYC 7002 processor only supports PCI-E type M.2 module) Form factor: 2280, 22110 Key: M-key
Drive Bays	8 x 3.5" hot-swap SAS3/SATA drive bay 2 x 3.5" fixed drive bay
Network Controller	2 1GbE LAN via Intel® i350-AM21 1 Realtek RTL8211E PHY (dedicated IPMI)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
Graphics	ASPEED AST2500 BMC
Cooling Features	3 x 80mm Hot-Swap PWM Fans
Onboard I/O	SATA: 10 SATA3 (6 Gbps) ports LAN: 2 RJ45 Gigabit Ethernet LAN ports, 1 RJ45 Dedicated IPMI LAN port USB: 2 USB 3.0 ports (rear), 4 USB 2.0 ports (2 rear + 2 via header) Video Output: 1 VGA port Serial Port / Header: 1 COM port (rear), 2 SATA DOM power connector TPM: 1 TPM Header
Power Supply	800W Redundant Power Supply (96% Efficiency) 80PLUS Titanium Level
Dimension / Form Factor	2U Rackmount
