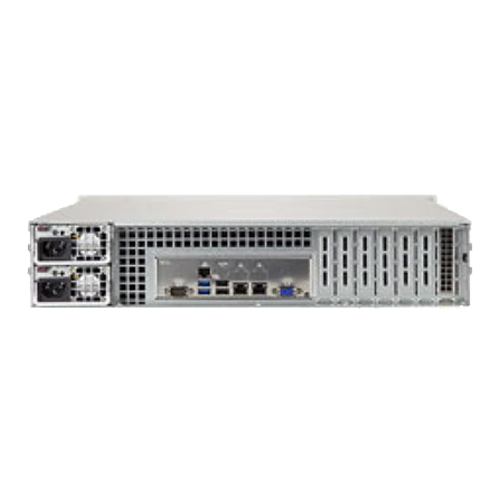

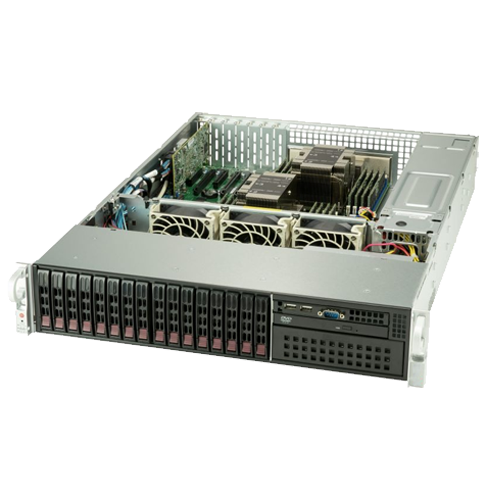

Invento i611 Purley Series

i611

Invento i611 Purley Series

Salient Features
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM slots
  • 4 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 slots, support 5 low-profile AOCs
  • 8x 2.5" SAS3 & 8x 2.5" SATA3 Hot-swap Drive Bays, optional DVD-ROM drive, optional support 2 NVMe/SSD/HDD
    2.5" fix drives, 1 M.2 support2x 1GbE LAN ports via Intel C621
  • 2x 1GbE LAN ports with Intel® X722
  • 1200W Redundant Power Supplies Titanium Level (96%)

Specification

Model i611
Processor Support 2 X Intel® Xeon® Scalable Proc essors, Dual UPI up to 10.4GT/s
Core Logic Intel® C621 chipset
Memory
  • 16 x DIMM slots;
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz
PCIe Expansion Slot
  • 4 PCI-E 3.0 x16,
  • 1 PCI-E 3.0 x8 slots,
  • Support 5 low-profile AOCs
RAID Options
  • SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
  • SAS: Broadcom 3108 SAS3 (12Gbps) controller; HW RAID 0, 1, 5, 6, 10, 50, 60
Drive Bays 8x 2.5" SAS3 & 8x 2.5" SATA3 Hot-swapDrive Bays, optional DVD-ROM drive, optional support 2 NVMe/SSD/HDD 2.5" fix drives, 1 M.2 support
Network Controller
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC
Power configurations ACPI Power Management
Onboard I/O
  • SATA: 8 SATA3 (6Gbps) ports
  • SAS: 8 SAS3 (12Gbps) ports
  • USB: 2 USB 3.0 ports (2 rear), 4 USB 2.0 ports (2 rear, 2 front), 1 USB Type A
  • Video: 1 VGA Connector
  • Serial Port / Header: 2 Fast UART 16550 serial, 2 COM Ports (1 rear, 1 front)
Power Supply 1200W Redundant Power Supplies Titanium Level (96% efficiency)
Dimension / Form Factor 2U Rackmount
