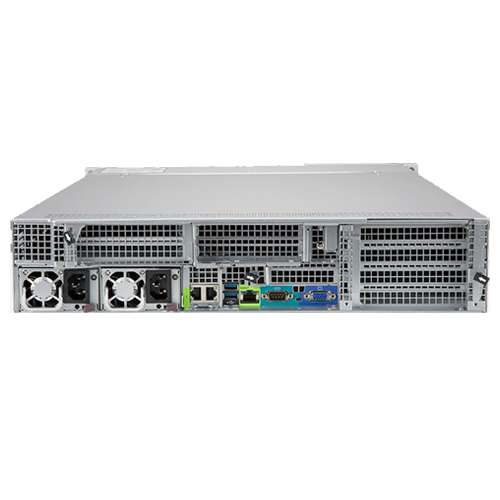

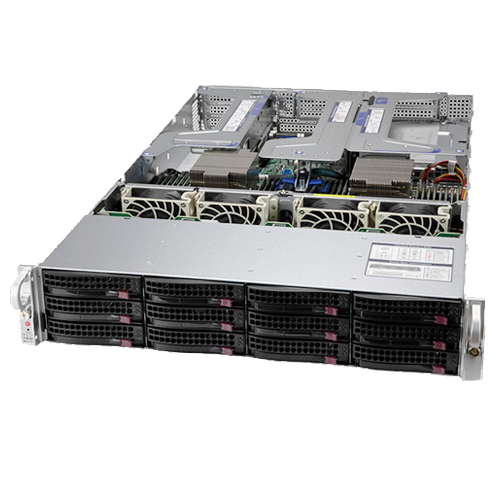

Invento i6110 EPYC Series

i6110 EPYC

Invento i6110 EPYC Series

Salient Features
  • Dual AMD EPYC™ 7003/7002 Series Processors
  • Up to 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
  • 2 PCI-E 4.0 x16 (FH, 10.5" L) slots, 1 PCI-E 4.0 x16 (FH, 9.5" L) slot, 1 PCI-E 4.0 x16 (LP) slot, 1 PCI-E 4.0 x8 (FH, 9.5" L, in x16) slot, 1 PCI-E 4.0 x8 (internal proprietary LP in x16) slot
  • Dual 10GBase-T LAN Ports
  • Dual 10GBase-T LAN ports via Intel® X710-AT2
  • 4 Heavy-duty PWM Fans
  • 12 hot-swap 3.5" Drive Bays
  • RoHS Compliant
  • 1600W Redundant Power Supplies Titanium Level (96%+ Efficiency)

Specification

Model i6110 EPYC
Processor Support 2 X Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) Socket SP3, Supports CPU TDP up to 280W, Up to 64 Cores
Core Logic System on Chip
Memory
  • 32 x DIMM slots;
  • Up to 8TB Registered ECC DDR4 3200MHz SDRAM
PCIe Expansion Slot
  • 2 PCI-E 4.0 x16 (FH, 10.5" L) slots,
  • 1 PCI-E 4.0 x16 (FH, 9.5" L) slot,
  • 1 PCI-E 4.0 x16 (LP) slot,
  • 1 PCI-E 4.0 x8 (FH, 9.5" L, in x16) slot,
  • 1 PCI-E 4.0 x8 (internal proprietary LP in x16) slot
Drive Bays 12 hot-swap 3.5" Drive Bays:
  • 12 SATA3 by default
  • OR 8 SATA3 + 4 NVMe via optional kit
  • OR 12 SAS3 via optional SAS kit
IPMI
  • Integrated IPMI 2.0 + KVM with dedicated LAN
  • ASPEED AST2500 BMC
Network Controllers
  • Dual 10GBase-T LAN ports via Intel® X710-AT2
  • 1 RJ45 Dedicated IPMI LAN port
Cooling Features 4 Heavy-duty PWM Fans with optimal fan speed contro
Onboard I/O
  • SATA: 12 SATA3 (6 Gbps) ports
  • USB: 4 USB 3.0 ports (1 front + 2 rear + 1 Type A)
  • VGA: 1 VGA port
  • SAS: 12 SAS3 ports support via optional SAS kit
  • NVMe: 4 NVMe support via optional tray
  • Others: 1 COM port (rear), 2 SATA DOM power connector, TPM 1.2 header
Power Supply 1600W Redundant Power Supplies Titanium Level (96%+ Efficiency) 80PLUS
Dimension / Form Factor 2U Rackmount
