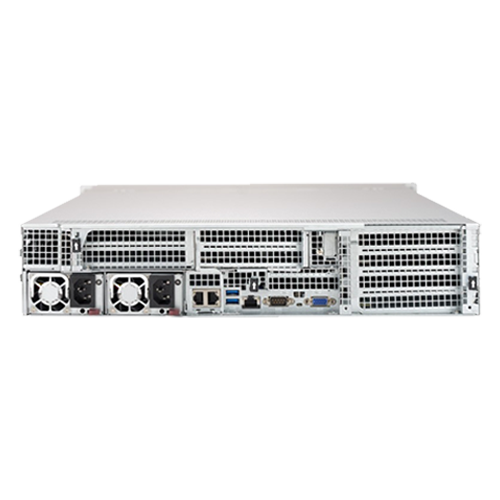

Invento i6112 Series

i6112

Invento i6112 Series

Salient Features
  • Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane DCPMM; 24x DIMM slots
  • 1 PCI-E 3.0 x16 slot (FH, 10.5" L), 5 PCI-E 3.0 x8 slots (FH, 10.5" L), 1 PCI-E 3.0 x8 slot (LP), 1 PCI-E 3.0 x8 slot (internal LP)
  • 4 Heavy duty 8cm PWM fans
  • 24 Hot-swap 2.5" drive bays
  • 2 x 10G SFP+ Ethernet ports
  • 1000W Redundant Power Supplies Titanium Level (96% Efficiency)

Specification

Model i6112
Processor Support 2 x 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
Core Logic Intel® C621 Chipset
Memory
  • 24 x DIMM slots
  • Up to 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
PCIe Expansion Slot
  • 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
  • 5 PCI-E 3.0 x8 slots (FH, 10.5" L),
  • 1 PCI-E 3.0 x8 slot (LP),
  • 1 PCI-E 3.0 x8 slot (internal LP)
RAID Options SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
Drive Bays
  • 24 Hot-swap 2.5" drive bays;
  • 14 SATA3 (optional 20 SAS3 + 4 NVMe/SAS3)
Network Controllers 2 x 10G SFP+ ports via Add on card (Intel® 82599ES)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Onboard I/O
  • SATA: 14 SATA3 (6Gbps) ports
  • LAN: 2 x 10G SFP+ ports, 1 RJ45 Dedicated IPMI LAN port
  • USB: 5 USB 3.0 ports (2 rear, 2 onboard header, 1 Type A)
  • Video: 1 VGA Connector
  • Serial Header: 1 Serial header
Power Supply 1000W Redundant Power Supplies Titanium Level (96% Efficiency)
Dimension / Form Factor 2U Rackmount
