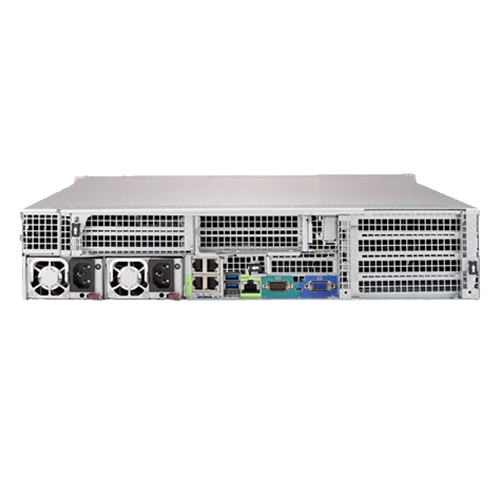

Invento i611e Purley Series

Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM; 24 DIMM slots
1 PCI-E 3.0 x16 slot (FH, 10.5" L), 5 PCI-E 3.0 x8 slots (FH, 10.5" L), 1 PCI-E 3.0 x8 slot (LP), 1 PCI-E 3.0 x8 slot (internal LP)
24 Hot-swap 2.5" Drive Bays; 14 SATA3 (optional 20 SAS3 + 4 NVMe/SAS3), Optional 2 hot-swap 2.5" rear drive bays for SSDs; Optional M.2 NVMe and SATA3 ports
4 x 1GbE LAN ports via Intel i350
1000W Redundant Power Supplies Titanium Level (96%)

Model	i611e
Processor Support	2 X Intel® Xeon® Scalable Proc essors, Dual UPI up to 10.4GT/s
Core Logic	Intel® C621 chipset
Memory	24 x DIMM slots; Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
PCIe Expansion Slot	1 PCI-E 3.0 x16 slot (FH, 10.5" L) 5 PCI-E 3.0 x8 slots (FH, 10.5" L) 1 PCI-E 3.0 x8 slot (LP) 1 PCI-E 3.0 x8 slot (internal LP)
RAID Options	SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
Drive Bays	Hot-swap: 24 Hot-swap 2.5" drive bays; 14 SATA3 (optional 20 SAS3 + 4 NVMe/SAS3) M.2: 1 M.2 PCI-E 3.0 x4 M-Key NVMe and 1 M.2 M-Key SATA3 via optional riser card 2 M.2 PCI-E 3.0 x4 M-Key NVMe via optional add-on card
Networking	4 x 1GbE LAN ports via Intel® i350
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500 BMC
Power configurations	ACPI Power Management
Cooling Features	4 Heavy duty 8cm PWM fans
Onboard I/O	SATA: 14 SATA3 (6Gbps) ports LAN: 4 RJ45 1GbE LAN ports, 1 RJ45 Dedicated IPMI LAN port USB: 5 USB 3.0 ports (2 rear, 2 onboard header, 1 Type A) Video: 1 VGA Connector Serial Header: 1 Serial header DOM: 2 DOM (Disk on Module) ports
Power Supply	1000W Redundant Power Supplies Titanium Level 80PLUS (96% efficiency)
Dimension / Form Factor	2U Rackmount
